Item NO.:

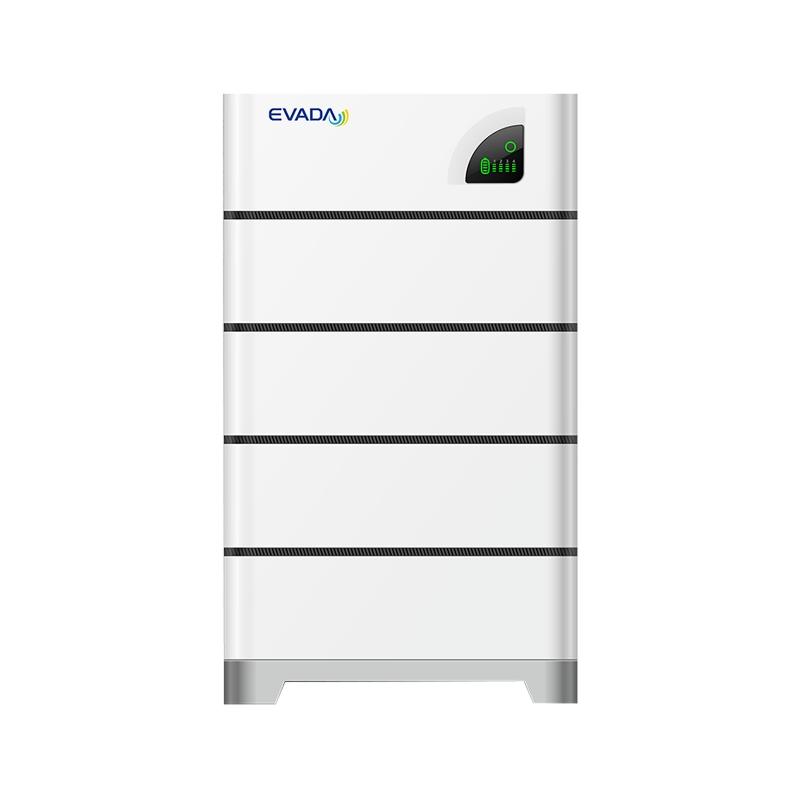

ELEBOX-5.1Product Origin:
ChinaColor:
WhiteFeatures
Wide voltage range for home and industrial use
Built-in BMS monitors battery information in real time and improves battery life
Soft start function to protect the inverter
Long lasting 6000 cycle life at 80% DOD
|
Basic parameters |
ELEBOX-5.1 |
ELEBOX-7.7 |
ELEBOX-10.2 |
ELEBOX-12.8 |
ELEBOX-15.4 |
ELEBOX-17.9 |
ELEBOX-20.5 |
ELEBOX-23 |
ELEBOX25.6 |
|
Number of battery modules |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Rated voltage |
102.4V |
153.6V |
204.8V |
256V |
307.2V |
358.4V |
409. 6V |
460.8V |
512V |
|
Rated capacity |
5.1kWh |
7.6kWh |
10.2kWh |
12.8kWh |
15.3kWh |
17.9kWh |
20.4kWh |
23kWh |
25.6kWh |
|
Usable capacity (90%DOD) |
4.59kWh |
6.84kWh |
9.18kWh |
11.52kWh |
13.77kWh |
16. 11kWh |
18.36kWh |
20.7kWh |
23.04kWh |
|
Dimensions(W*D*H) |
355*593*587 |
355*593*732 |
355*593*877 |
355*593*1022 |
355*593*1167 |
355*593*1312 |
355*593*1457 |
355*593*1602 |
355*593*1759 |
|
Weight (Kg) |
93 |
127 |
161 |
195 |
229 |
263 |
297 |
331 |
365 |
|
Protection class |
IP65 |
||||||||
|
Cooling mode |
Natural cooling |
||||||||
|
Rated charging current |
25A |
||||||||
|
Maximum continuous charging current |
30A |
||||||||
|
Rated discharge current |
25A |
||||||||
|
Maximum continuous discharge current |
30A |
||||||||
|
Operating temperature |
-10C ~ 55C |
||||||||
|
Storage temperature
|
≤25C, 12Months |
||||||||
|
≤35C, 6Months |
|||||||||
|
≤45C, 3Months |
|||||||||
|
Humidity |
<95%RH (No condensation) |
||||||||
|
Battery operating altitude |
<2000m |
||||||||
|
Certification |
CE, IEC62619, MSDS, ROHS, UN38.3 |
||||||||
|
Service life |
6000 cycles @ 80%DOD / 25C / 0.5C / 60% EOL |
||||||||
