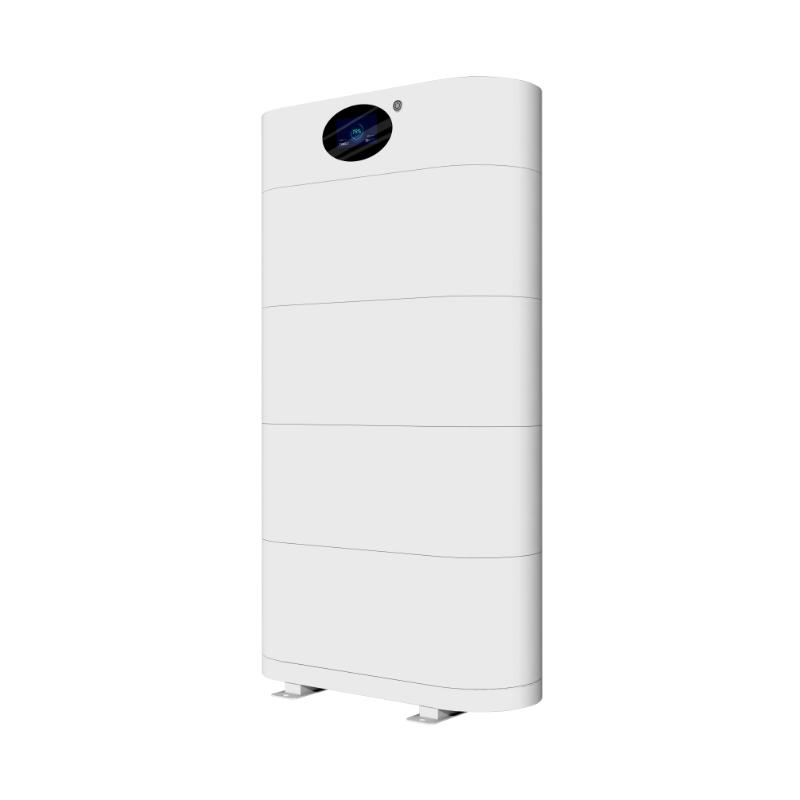

eLith Cube Series Battery

Item NO.:
STHV-3K 6.4
Product Origin:
China
Color:
White

Inquiry now Download

Product Detail
Technical Data

Features

Lithium-ion battery offers long lifespan

Modular and wireless design for easy installation

Compatible with multiple brand’s inverter

Allowing installation against the wall

MODEL	STHV-3K 6.4	STHV-3K 9.6	STHV-3K 12.8	STHV-3K 16	STHV-3K 19.2	STHV-3K 22.4
Modules	STHV-3K—3.2 (3.2kWh, 64V, 36kg,233/617/254)
Number of battery modules	2	3	4	5	6	7
Rated capacity	6.4kWh	9.6kWh	12.8kWh	16kWh	19.2kWh	22.4kWh
Rated voltage	128V	192V	256V	320V	384V	448V
Voltage range	116-144.8V	174-217.2V	232-289.6V	290-362V	348-434.4V	406-506.8V
Dimensions（HWD）	688617254	921617254	1154617254	1387617254	1620617254	1853617254
Weigh（t Kg）	105.5	141.5	177.5	213.5	249.5	285.5
Protection class	IP65
Installation	Floor installation
Certifications	CE, IEC62619 (Cell&Pack), MSDS, ROHS, UN38.3
