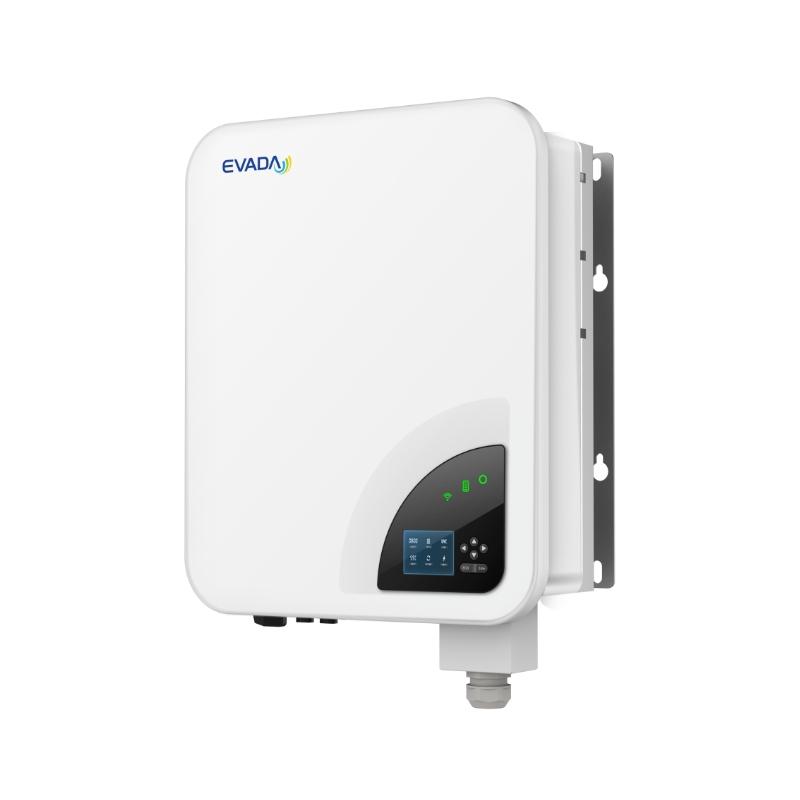

eLite Pro Seires On＆Off Grid Solar Inverter works with solar panels and batteries to form an energy storage
system. It can be used to optimize self-consumption and store the excess power in
the battery. Multiple working modes to meet users' needs, featuring backup mode to
ensure the stable power supply when utility failed.
Item NO.:
EHS-5000-BHProduct Origin:
ChinaColor:
WhiteFeatures
User Friendly
Compact and light weight design
Natural cooling convection, maintenance-free and reduces acoustic noise
LCD status display provides real-time information readouts
The charging current and charging time is alterable
High Efficiency
High DC to AC energy efficiency
Lithium/VRLA battery compatible
Allowing back up mode as emergency power supply
Multiple working modes for various applications
Comprehensive Function
Fault detection ensures safety of the equipment
Battery reverse polarity protection
Enables multiple ways of monitoring
IP65, suitable for use in various outdoor environment
|
MODEL |
EHS-3000-BH |
EHS-3700-BH |
EHS-4600-BH |
EHS-5000-BH |
|
INPUT (DC) |
||||
|
Max. PV array Power (Wp) |
4000 |
5000 |
6000 |
6000 |
|
Max. DC voltage (V) |
600 |
600 |
600 |
600 |
|
Nominal DC operating voltage(V) |
360 |
360 |
360 |
360 |
|
Max. input current (input A/input B) (A) |
10/10 |
10/10 |
10/10 |
10/10 |
|
Max. short circuit current (input A/input B) |
14/14 |
14/14 |
14/14 |
14/14 |
|
MPPT voltage range |
125-550 |
125-550 |
125-550 |
125-550 |
|
Start operating voltage |
150 |
150 |
150 |
150 |
|
No.of MPP trackers |
2 |
2 |
2 |
2 |
|
String per MPP tracker |
1 |
1 |
1 |
1 |
|
INPUT (AC) |
||||
|
Max. apparent AC power (VA) |
3000 |
3700 |
4600 |
5000 |
|
Max. AC current (A) |
14.4 |
16 |
21 |
21.7 |
|
Nominal grid voltage (AC voltage range) |
220/230/240(180-270) |
220/230/240(180-270) |
220/230/240(180-270) |
220/230/240(180-270) |
|
Nominal grid frequency/range (Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
|
OUTPUT (AC) |
||||
|
Nominal AC power (VA) |
3000 |
3700 |
4600 |
5000 |
|
Max. apparent AC power (VA) |
3000 |
3700 |
4600 |
5000 |
|
Nominal grid voltage (AC voltage range) (A) |
220/230/240(180-270) |
220/230/240(180-270) |
220/230/240(180-270) |
220/230/240(180-270) |
|
Nominal grid frequency/range (Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
|
Nominal AC current (A) |
13 |
16 |
20 |
21.7 |
|
Displacement power factor |
0.8 leading 0.8 lagging |
|||
|
THDi, rated power (%) |
＜2 |
|||
|
OUTPUT DC (BATTERY) |
||||
|
Battery voltage range (V) |
85-400 |
|||
|
Recommended battery voltage(V) |
300 |
|||
|
Max. continuous charge/discharge current (A) |
20 |
|||
|
Communication interfaces |
CAN/RS485 |
|||
|
Reverse connect protection |
Yes |
|||
|
OFF-GRID OUTPUT (WITH BATTERY) |
||||
|
MAX. continuous apparent power (VA) |
4000 |
4000 |
5000 |
5000 |
|
EPS rated voltage [V], Frequency (Hz) |
230, 50/60 |
230, 50/60 |
230, 50/60 |
230, 50/60 |
|
EPS MAX. continuous current(A) |
21.7 |
21.7 |
26 |
26 |
|
EPS peak apparent power (VA)Duration(S) |
6000 | 10 |
6000 | 10 |
8000 | 10 |
8000 | 10 |
|
Changeover time (ms) |
<20 for I version / <500 for E version |
|||
|
THDv, linear Load (%) |
＜2 |
|||
|
EFFICIENCY |
||||
|
MPPT efficiency (%) |
99.9 |
|||
|
Euro efficiency (%) |
97.0 |
|||
|
Max. efficiency (%) |
97.8 |
|||
|
Battery charge/discharge efficiency (%) |
98.5 (PV-BAT) 97.0 (BAT-AC) |
|||
|
POWER CONSUMPTION |
||||
|
Standby consumption (Night) (W) |
<15 for hot standby, <3 for cold standby |
|||
|
ENVIROMENTAL LIMITS |
||||
|
Protection class |
IP65 |
|||
|
Operating temperature range (℃) |
-20~+60 (derating at +45) |
|||
|
Max operation altitude (M) |
2000 |
|||
|
Humidity (%) |
4~100(Condensing) |
|||
|
Storage temperature (℃) |
-20~+60 |
|||
|
Typical noise emission (dB) |
40 |
|||
|
DIMENSION AND WEIGHT |
||||
|
Dimensions (WxHxD) (mm) |
422*464*185 |
|||
|
Weight(kg) |
18 |
|||
|
Cooling concept |
Natural |
|||
|
Topology |
Non-isolated |
|||
|
Communication interfaces |
Ethernet/Meter/Pocket WiFi (optional)/Pocket LAN (optional)/Pocket GPRS (optional)/DRM/USB/ISO alarm/CT |
|||
|
LCD display |
Backlight 20*4 character |
|||
