Item NO.:

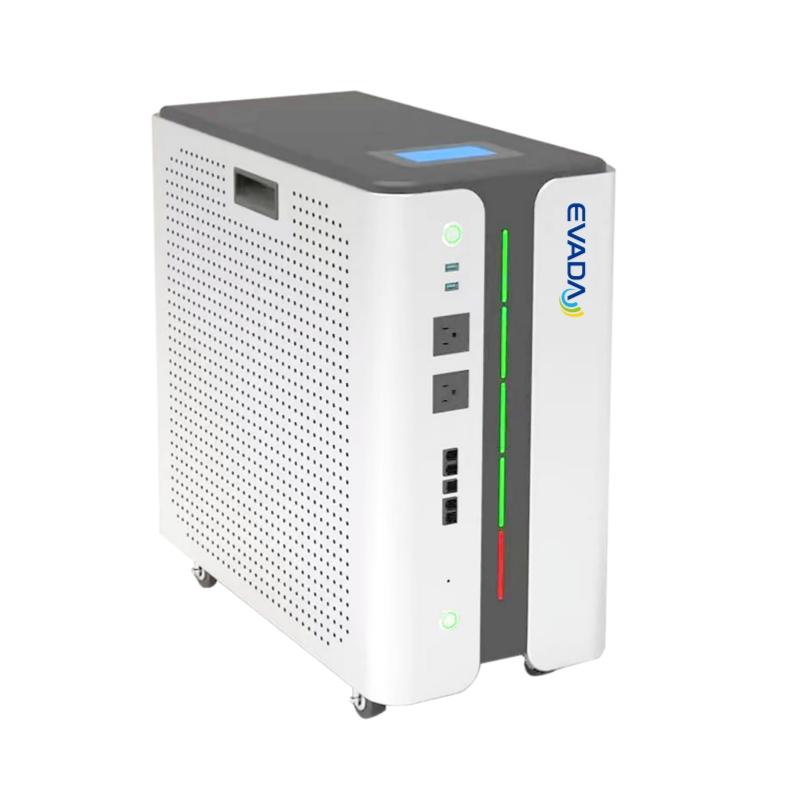

MHY-1Product Origin:
ChinaColor:
WhiteFeatures
Design with handle＆turning wheels, easy for floor movement
Built-in LFP lithium battery and inverter
Multiple operating modes for various applications
Diversity methods for input (solar & utility & generator) and output
IP 65 rated for outdoor using Alarm system to notify users when event happens
CE marked ensures the safet
|
MODEL |
MHY-1 |
MHY-2 |
|
AC parameters (Grid Connection Mode) |
||
|
Rated power |
3000W |
5000W |
|
Rated voltage/Range
|
230V /180Vac~280Vac； |
|
|
110-120/220-240V split phase |
||
|
Rated frequency |
50/60Hz |
|
|
AC Parameters (Battery Mode) |
||
|
Output power |
3000W |
5000W |
|
Output voltage
|
230V /180Vac~280Vac； |
|
|
110-120/220-240V split phase |
||
|
Rated frequency |
50/60Hz |
|
|
Off-Grid switching time |
≤20mS |
|
|
Battery Parameters |
||
|
Rated voltage/Range |
48V/44.8~57.6V |
|
|
Battery type |
Lithium Battery（LFP） |
|
|
Battery capacity |
5kwh |
|
|
Maximum charge/Discharge ratio |
0.7/1C |
|
|
Photovoltaic Parameters |
||
|
Recommended maximum photovoltaic input power |
3000W |
5000W |
|
Open circuit voltage/MPPT voltage range |
60-150V |
|
|
Number of MPPTs/Number of strings per circuit MPPT |
1/1 |
|
|
Maximum input current |
40A |
|
|
System Parameter |
||
|
Human machine interface HMI |
LCD+Wifi+LED optional |
|
|
Installation mode |
Movable; Floor to wall |
|
|
Size |
612 * 275 * 510mm |
|
