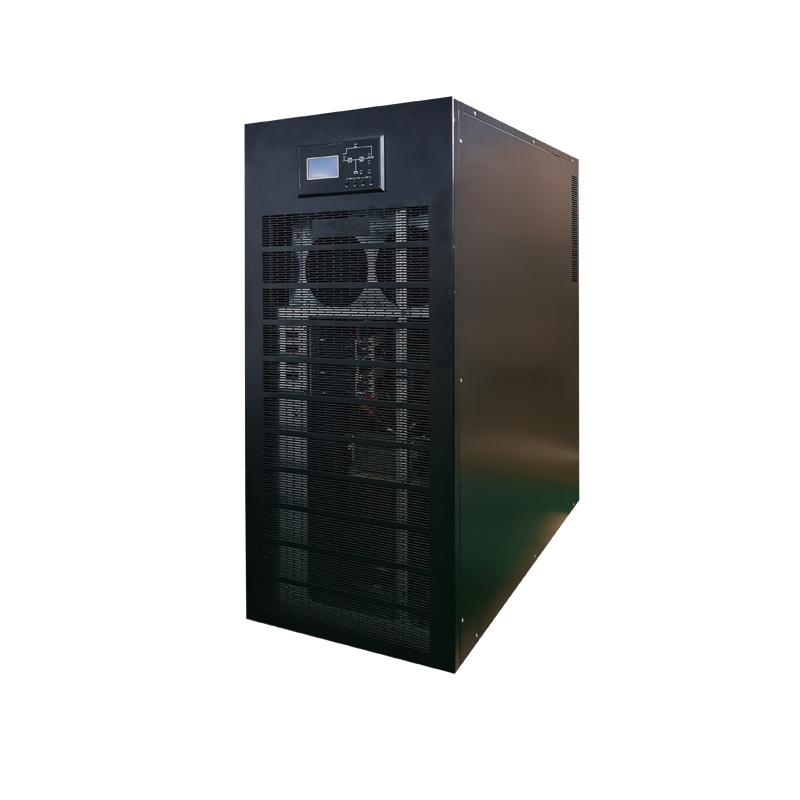

HQ31 transformer-base UPS for Power plant&oil&Gas

Capacity: 10-30KVA UPS
Features: tower, three phase in, single phase out Output PF=0.8 UPS with built-in isolation transformer, Dual DSP digital control technology,Safe and Reliable,Comprehensive Protection,Intelligent Management
Battery: internal
Color: Black
Description: HQ 31 SERIES is 3 phase low frequency UPS 10KVA-30KVA

Inquiry now Download

Product Detail
Technical Data

Application Field
Medical equipment, data centers, precision instrument,banks, ETC, industrial production lines&controlling system.

Performance Characteristics
Safety and Reliability
1.MCU control to ensure higher reliability.
2.Wide Input Voltage and Frequency Range.
3.Maintenance bypass switch.
4.Cold start function.

Comprehensive Protection
1.Independent air duct to split air flow.
2.Output Isolation transformer.
3.N+X parallel function.
4.Support dual input.
5.Fitting for high-temperature, dusty, salinity&Corrosive gas environment.

Intelligent Management
1.Advanced Battery Management system.
2.RS232/RS484 communication port, dry contact&SNMP optional.
3.Settable charge current according to battery capacity.

Performance

Model	HQ30L	HQ50L	HQ60L	HQ1110L	HQ3110L	HQ3115L	HQ3120L	HQ3130L
Rated Capacity	3KVA	5KVA	6KVA	10KVA	10KVA	15KVA	20KVA	30KVA
Input
Voltage Range	Single Phase（L+N+G）165Vac~275Vac					Three Phase
Frequency Range	50±5%Hz
Frequency Tracking	≤1Hz/s
Output
Voltage Range	Single Phase 220Vac± 1%
Frequency Range	50Hz±5%（Mains power）；50Hz±0.5%（Battery）
Dynamic Response	±3%（100% Load change）
THD	≤3％（100％Linear load）；≤5％（100％Non-linear load）
Crest Factor	3:1
Parallel Load CurrentImbalance	≤3%
Power Factor	0.8
Overload Capacity	110%~125% Last 10 Mins；＜150% Last 1 Min
Switching Time	0ms
Efficiency	≥90%@100% Load
Battery
Type	Sealed maintenance-free lead-acid battery
DC Voltage	96Vdc/192Vdc	192VDC
Charging Current	Optional according to needs
Display
LED Indicator	Mains lights, inverter lights, battery under voltage lights, bypass lights, overload lights, fault lights
LCD Display	English display, input and output voltage and frequency, battery voltage, load percentage, UPS status,operating temperature, etc
Other Functions
Alarm Function	Mains power failure, low battery, output overload, UPS abnormality, etc.
Protection Function	Overload: switch to bypass power supply, and automatically switch to inverter after reducing theload; overheat: switch to bypass power supply at >85℃; short circuit: automatically limit current and cut off the output
Protection Function	Fault: switch to bypass power supply; overvoltage protection: UPS output overvoltage switch to bypass; under voltage protection: battery under voltage shutdown UPS output
Environment
Operating Temperature	0～40℃
Nosie	<60dB@1 meter
Communication
Interface	RS232、RS485；Optional：dry contact,SNMP
Physical
WxDxH(mm)）	260x550x520			350x660x750			400x750x900
Weight	35	48	52	101	128	142	210	230

* Specifications are subject to change without prior notice
