eLith Wall Series Battery

  • Item NO.:

    ES-BOX2
  • Product Origin:

    China
  • Color:

    White

Features

51.2V Allowing for Parallel Connection

Wide Operating Temperature Range

Long Lasting 6000 Cycle Life at 80% DOD

Communication: RS485/RS232/CAN

Model

ES-BOX2

Nominal energy

5KWH

Nominal voltage

51.2V

Nominal capacity

100Ah

Cell type

LFP

Standard charge voltage

58.4V

Max discharge current

100A

Discharge cut-off voltage

40V

Parallels function

Support 15 Units in Parallels

Communication interface

RS485, RS232, CAN (Optional)

Display

LCD

Cycle life *

6000 Cycles (80%DOD)

Dimensions

600*510*173mm

Weight

47Kg

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Residential Solar Inverter

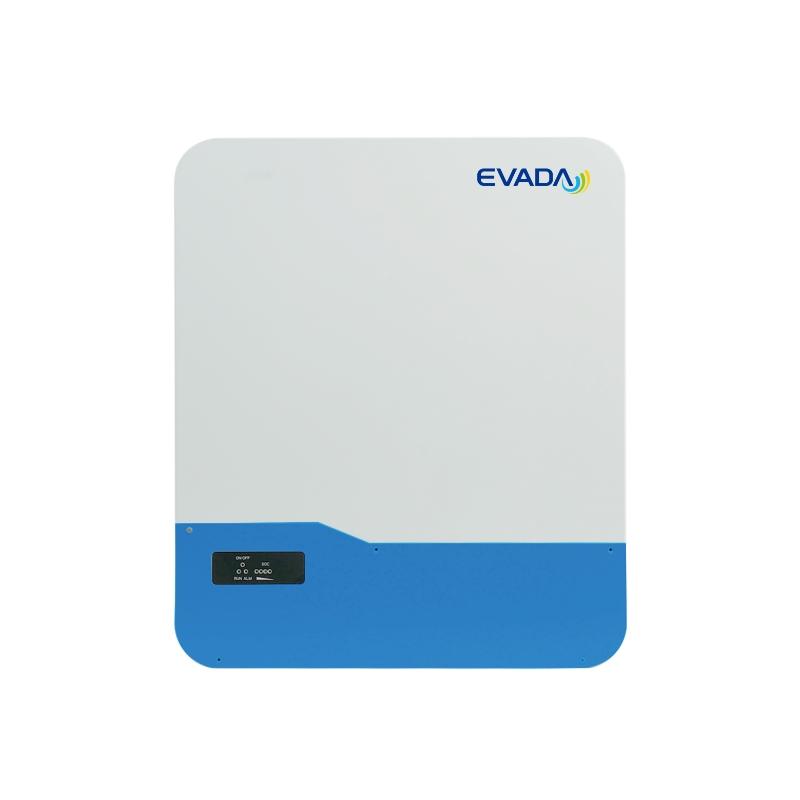

eLite Pro Series On&Off Grid Solar Inverter
