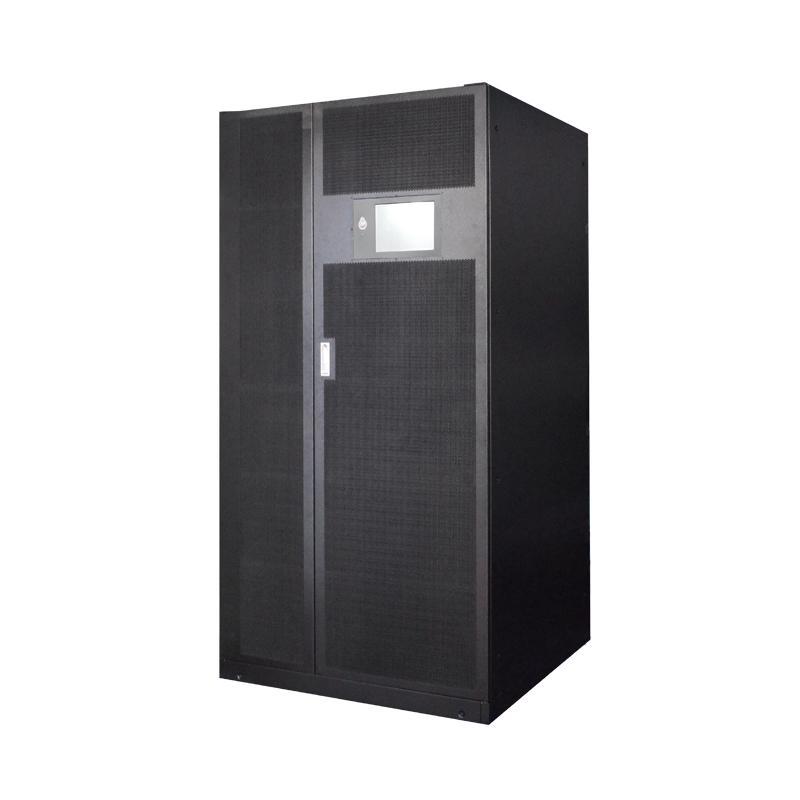

Power range: 600-1200kVA
Rated voltage: 380VAC/400VAC/415VAC 3P+N+PE
Rated frequency: 50/60Hz
Product description: Double conversion, Modular design
Redundancy:6+1 or 10+2 redundancy design
Display: 10'' color touch LCD screen
PF: Output PF=1
1. HQ-M UPS provides multiple robust characteristics to mini mize risks and make customers satisfied.
2. With system efficiency as high as 96.5%,HQ-M UPS brings customer low operation expense.
3. With the availability of 50/60 modules. customers can make a flexible configuration with 600 to 1200KVA system capacity.
4. Equipped with smart human ma chine interfaces, HQ-M fits for all kinds of application requirement
Reliable
(6+1/10+2 Redundancy design)
Power module N + X redundancy design, the system can provide up to 20% redundancy capacity under 100% load, reaching the highest level of rack Class B availability

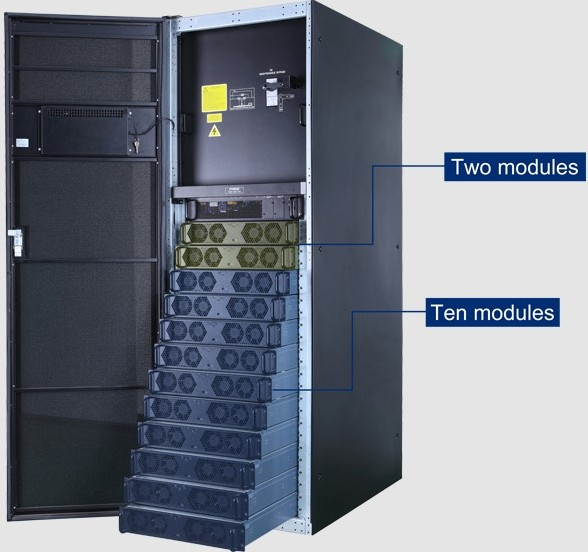

200kva = (10+2)*20kva modules.
500kva = (10+2)*50kva modules
300kva = (6+1)*50kva modules
(Redundancy design for Fans)

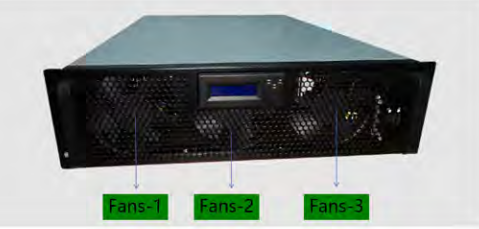

The redundancy design of intelligent speed regulating fan will not affect the use of the whole module due to the abnormality of a single fan
Efficiency
(High efficiency at double conversion mode)
The system efficiency is as high as 96.5%: the energy con sumption and operation cost are saved by more than 15% each year. High efficiency significantly lowers operation costs and provides savings in cooling
Flexible
(All hot swappable module design)
The system supports phased deployment and capacity expansion on demand to reduce the initial investment cost of customers

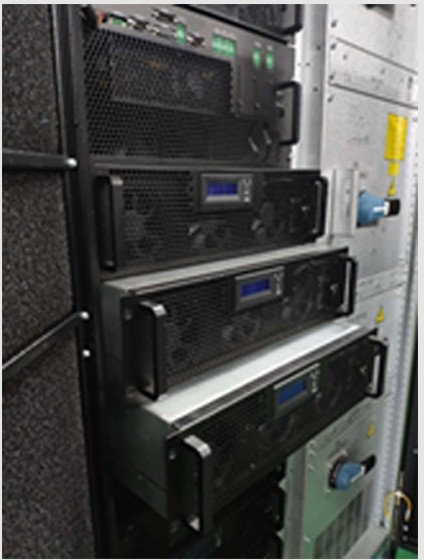

Both bypass module and power module support online hot plug, the operation is easy and safe, and the MTTR is less than 5minutes
Intelligent
To (Touch screen for visual control)

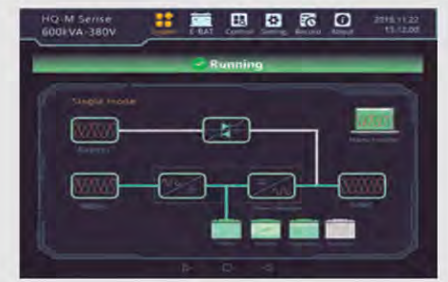

10 inch color touch screen, graphical display and abundant functions are available.
Main page can directly show the current working status. All the running information of each part can be checked from display.
(intelligent battery management)

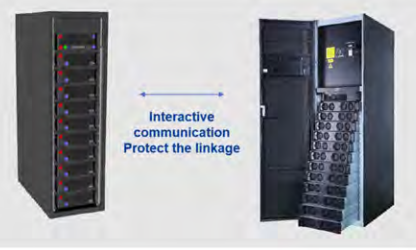

UPScan interacts with the lithium battery BMS system in real time to realize the intelligent management and linkage of the UPS to the battery and prevent the battery from getting out of control
|
Model |
HQ-M300/50 |
HQ-M500/50 |
HQ-M600/60 |
HQ-M840/60 |
HQ-M1000/50 |
HQ-M1200/60 |
|
|
Rated Capacity |
300kVA |
500kVA |
600kVA |
840kVA |
1000kVA |
1200kVA |
|
|
Power Module Capacity |
50kVA |
60kVA |
50kVA |
60kVA |
|||
|
Input |
|||||||
|
Wiring Method |
3 Phase+N+PE |
||||||
|
Rated Voltage |
380/400/415VAC(line-line) |
||||||
|
Rated Frequency |
50/60Hz |
||||||
|
Voltage Range |
304VAC ~ 478VAC (line-line) full load； 304VAC ~ 228VAC(line-line) load derating linearly from 100% to 80% |
||||||
|
Frequency Range |
40Hz~70Hz |
||||||
|
Power Factor |
>0.99 |
||||||
|
THD |
THD＜3％(linear full load)； THD＜5％(non-linear full load) |
||||||
|
Bypass |
|||||||
|
Rated Voltage |
380/400/415VAC(line voltage) |
||||||
|
Voltage Range |
Factory setting -20% ~ +15% ；settable, upper limit:+10%,+15%,+20%,+25%；lower limit:-10%,-15%, -20%, -30%,-40% |
||||||
|
Frequency Range |
Settable ( ±1Hz ，±3Hz ，±5Hz) |
||||||
|
Overload Capacity |
110% for long run，＞150% for 200ms |
||||||
|
Battery |
|||||||
|
Battery Voltage |
±192VDC ( 384 ~ 528VDC ；32 ~ 44 block settable ，factory setting 32 block) |
||||||
|
Charging Capacity |
15%* total capacity |
||||||
|
Voltage Accuracy |
±1% |
||||||
|
Output |
|||||||
|
Rated Voltage |
380V/400V/415V(line-line) |
||||||
|
Power Factor |
1 |
||||||
|
Rated Frequency |
50/60Hz |
||||||
|
Voltage Accuracy |
≤±1.0%@ balanced load；≤±5.0%@ unbalanced load |
||||||
|
Frequency Accuracy |
50/60Hz±0.01% |
||||||
|
Frequency Tracking Range |
Settable ，±0.5Hz~±5Hz ; factory setting±3Hz |
||||||
|
THD |
THDu≤2%(100% linear load),THDu≤4%( nonlinear load) |
||||||
|
Three-phase Phase Accuracy |
120°±1° |
||||||
|
Crest Factor |
3:1 |
||||||
|
Overload |
＜105％， long run； ＜110％， 60mins； 110 ~ 125％， 10mins； ＞125 ~ 150％， 1mins； ＞150％， 200ms |
||||||
|
System |
|||||||
|
Efficiency |
96.5%@ double conversion mode |
||||||
|
Display |
Super large color touch screen +LED |
||||||
|
Wiring |
Support top in and bottom in |
||||||
|
Standard |
IEC62040-1-1; IEC62040-2; IEC62040-3 |
||||||
|
Protection Class |
IP20 |
||||||
|
Optional |
SNMP card、modbus card、parallel components, lightning protection components, dust-proof net, LBS, editable dry contact |
||||||
|
Working Condition |
Temperature ：0~40℃； humidity：0~95%( no condensation) |
||||||
|
Noise |
＜65dB @ 1meter |
||||||
|
Altitude |
<1000 meters, no derating, ＞1000 meters, derating 1% if every 100 meters increased |
||||||
|
Cabinet Type |
6+1 Modules |
10+2 Modules |
12 Modules |
14 Modules |
20 Modules |
20 Modules |
|
|
Size |
|||||||
|
System W x D x H (mm) |
600 x 1100 x 2000 |
1000 x 1100 x 2000 |
1600 x 900 x 2000 |
2000 x 1100 x 2000 |
|||
|
Module W x D x H (mm) |
440 x 720 x 130 (3U) |
||||||
|
Weight |
|||||||
|
System(kg) |
250 |
500 |
530 |
980 |
1100 |
1180 |
|
|
Module(kg) |
|
38 |
|
||||
Product case 1

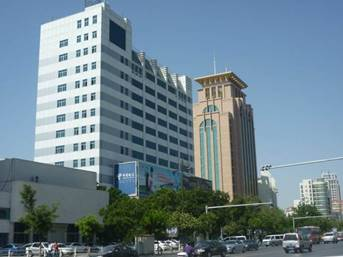

Yinchuan Telecom room
HQ-M series module UPS, the computer room product of Propoweress power data center of our company, provides reliable and stable power supply guarantee in the computer room of Yinchuan Telecom Data Center.
