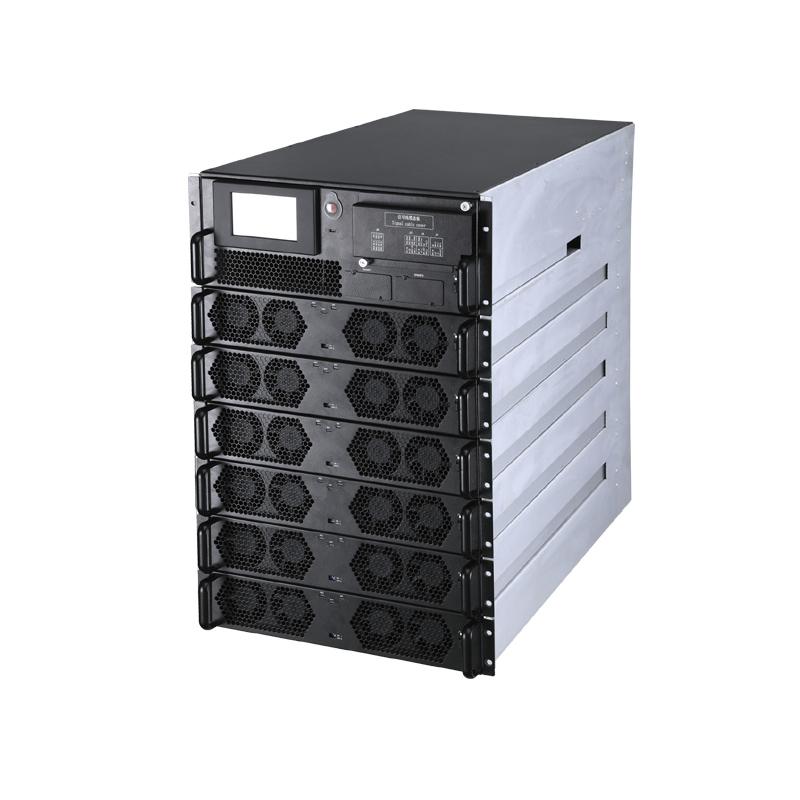

19’ rack-mounted, Online double conversion. The system power150Kva, 2U height 20K/25K power module. Output PF is 1.
Application: Finance, telecommunication, education, hospitals, transportation&other network devices, data centers.
Reliable: adopt 1 + 1 DSP design to improve system operation and response speed.
Efficient: The system efficiency is as high as 96%; High power density ratio 2U height for modules.
Flexible: Allowing 2/4/6 modules*20/25KVA modules to achieve different capacity for the system;
Simple: Embedded installation design for standard 19-inch cabinets; integrated with the power distribution modules, batteries, monitoring in one cabinet from 20KVA to 150KVA.
|
Model |
HQ-MR40/20 |
HQ-MR80/20 |
HQ-MR100/25 |
HQ-MR125/25 |
HQ-MR150/25 |
|
|
Rated Capacity |
40kVA |
80kVA |
100kVA |
125kVA |
150kVA |
|
|
Power Module Capacity |
20kVA |
20kVA |
25kVA |
25kVA |
25kVA |
|
|
Input |
||||||
|
Wiring Method |
3 Phase+N+PE |
|||||
|
Rated Voltage |
380/400/415VAC(line-line) |
|||||
|
Rated Frequency |
50/60Hz |
|||||
|
Voltage Range |
304VAC ~ 478VAC (line-line) full load； 304VAC ~ 228VAC (line-line) load derating linearly from 100% to 80% |
|||||
|
Frequency Range |
40Hz~70Hz |
|||||
|
Power Factor |
>0.99 |
|||||
|
THD |
THDi＜3％(linear full load)； THDi＜5％(non-linear full load) |
|||||
|
Bypass |
||||||
|
Rated Voltage |
380/400/415VAC(line voltage) |
|||||
|
Voltage Range |
Factory setting -20% ~ +15% ；settable, upper limit:+10%,+15%,+20%,+25%；lower limit:-10%,-15%, -20%, -30%,-40% |
|||||
|
Frequency Range |
Rated frequency 50/60Hz ；frequency range can be set ±1Hz ，±3Hz ，±5Hz |
|||||
|
Overload Capacity |
110% for long run ；>150% for 200ms |
|||||
|
Battery |
||||||
|
Battery Voltage |
±192VDC ( 360 ~ 528VDC ；30 ~ 44 block settable ，default is 32 blocks) |
|||||
|
Charging Capacity |
15%* total power capacity |
|||||
|
Voltage Accuracy |
±1% |
|||||
|
Output |
||||||
|
Rated Voltage |
380V/400V/415V(line-line) |
|||||
|
Rated Frequency |
50/60Hz |
|||||
|
Power Factor |
1 |
|||||
|
Voltage Accuracy |
≤±1.0%@ balanced load；≤±5.0%@ unbalanced load |
|||||
|
Frequency Accuracy |
50/60Hz±0.01% |
|||||
|
Frequency Tracking Range |
Settable ，±0.5Hz~±5Hz ;±3Hz |
|||||
|
THD |
THDu≤2%(100% linear load),THDu≤4%( nonlinear load) |
|||||
|
Three-Phase Phase Accuracy |
120°±1° |
|||||
|
Crest Factor |
3:1 |
|||||
|
Overload |
＜105％， long run； ＜110％， 60mins ； 110 ~ 125％， 10mins； ＞125 ~ 150％， 1mins； ＞150％， 200ms |
|||||
|
System |
||||||
|
System Efficiency |
96%@ double conversion mode ，≥98%@ECO mode |
|||||
|
Display |
LCD touch screen |
|||||
|
Wiring |
Support bottom in |
|||||
|
Language |
Chinese, English; optional: Russian,Italian, Spanish, German, etc. |
|||||
|
Protection Class |
IP20 |
|||||
|
Communication |
RS232/RS485/SNMP card (optional) / dry contact (optional) |
|||||
|
Working Condition |
Temperature ：0~40℃ ；humidity：0~95%( no condensation) |
|||||
|
Noise |
<60dB@1 meter |
|||||
|
Altitude |
<1000 meters, derating, ＞1000 meters, derating 1% if every 100 meters increased |
|||||
|
Cabinet Type |
2 Modules |
4 Modules |
6 Modules |
|||
|
Size |
||||||
|
System W x D x H (mm) |
482.6 x 800 x 353.2(8U) |
482.6 x 800 x 531(12U) |
482.6 x 900 x 800(18U) |
|||
|
Module W x D x H (mm) |
440 x 690 x 86(2U) |
|||||
|
Weight |
||||||
|
System(kg) |
37 |
47 |
72 |
|||
|
Module(kg) |
25 |
|||||
