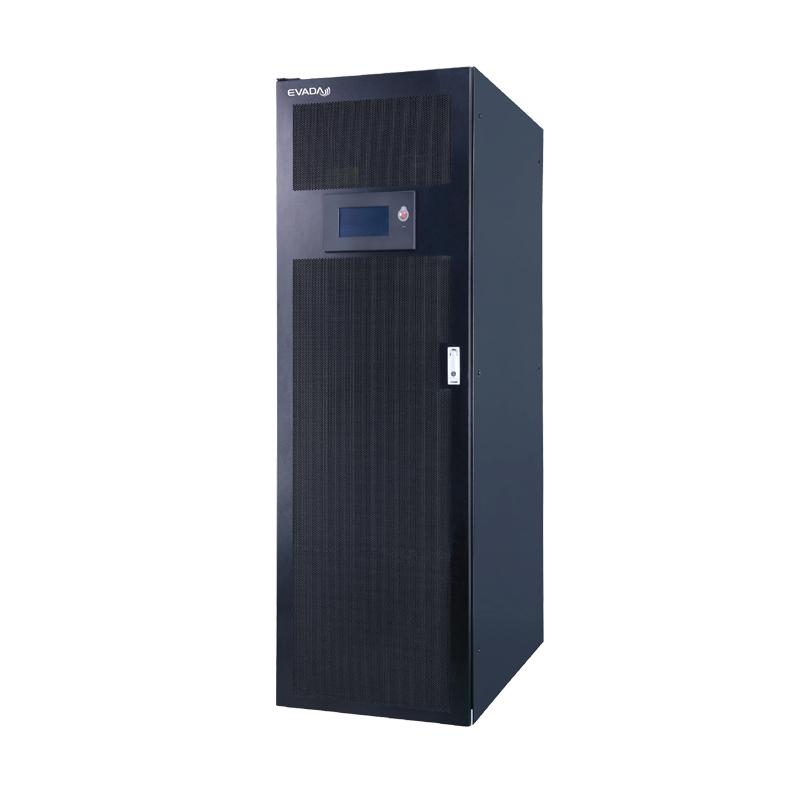

HQ-M SERIES（MODULAR UPS 20KVA-200KVA）
Power range: 20-200kVA
Rated voltage: 380VAC/400VAC/415VAC 3P+N+PE
Rated frequency: 50/60Hz
Product description: Double conversion, Modular design
Redundancy:6+1 or 10+2 redundancy design
PF: Output PF=1
1. HQ-M UPS provides multiple robust characteristics to mini mize risks and make custom ers satisfied
2. With system efficiency as high as 96%,HQ-M UPS brings customer low operation expense.
3. With the availability of 20/25 modules. customers can make a flexible configuration with 20 to 300KVA system capacity.
4. Equipped with smart human ma chine interfaces, HQ-M fits for all kinds of application requirements
Reliable
(6+1/10+2 Redundancy design)
Power module N + X redundancy design, the system can provide up to 20% redundancy capacity under 100% load, reaching the highest level of rack Class B availability
200kva = (10+2)*20kva modules.
300kva = (6+1)*50kva modules

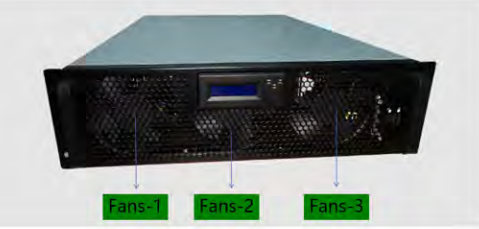

(Redundancy design for Fans)
The redundancy design of intelligent speed regulating fan will not affect the use of the whole module due to the abnormality of a single fan

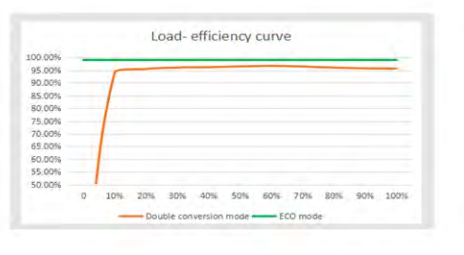

(High efficiency at double conversion mode)
The system efficiency is as high as 96%: the energy con sumption and operation cost are saved by more than 15% each year. High efficiency significantly lowers operation costs and provides savings in cooling
Flexible

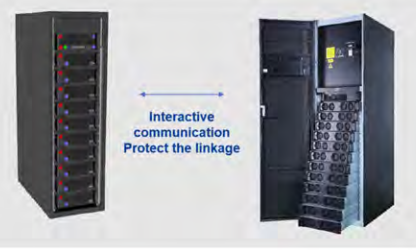

(All hot swappable module design)
The system supports phased deployment and capacity expansion on demand to reduce the initial investment cost of
customers.
Both bypass module and power module support online hot plug, the operation is easy and safe, and the MTTR is
less than 5minutes
Intelligent

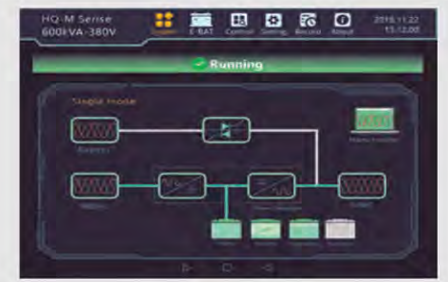

(Touch screen for visual control)
10 inch color touch screen, graphical display and abundant functions are available.
Main page can directly show the current working status. All the running information of each part can be checked
from display.
|
Model |
HQ-M60 |
HQ-M120 |
HQ-M200 |
HQ-M300 |
|
|
|
Rated Capacity |
60kVA |
120kVA |
200kVA |
300kVA |
|
|
|
Power Module Capacity |
|
20kVA/2 |
5KVA |
|
|
|
|
Input |
|
|||||
|
Wiring Method |
3 Phase+N+PE |
|
||||
|
Rated Voltage |
380/400/415VAC(line-line) |
|
||||
|
Rated Frequency |
50/60Hz |
|
||||
|
Voltage Range |
304VAC ~ 478VAC (line-line) full load； 304VAC ~ 228VAC (line-line) Load derating linearly from 100% to 80% |
|
||||
|
Frequency Range |
40Hz~70Hz |
|
||||
|
Power Factor |
>0.99 |
|
||||
|
THD |
THD＜3％(linear full load)； THD＜5％(non-linear full load) |
|
||||
|
Bypass |
|
|||||
|
Rated Voltage |
380/400/415VAC(line voltage) |
|
||||
|
Voltage Range |
Factory setting -20% ~ +15% ；settable, upper limit:+10%,+15%,+20%,+25%；lower limit:-10%,-15%, -20%, -30%,-40% |
|
||||
|
Frequency Range |
Rated frequency 50/60Hz ；frequency range can be set ±1Hz ，±3Hz ，±5Hz |
|
||||
|
Overload Capacity |
110% for long run ；>150% for 200ms |
|
||||
|
Battery |
|
|||||
|
Battery Voltage |
±192VDC ( 360 ~ 528VDC ；30 ~ 44 block settable ，factory setting 32 block) |
|
||||
|
Charging Capacity |
15%* total capacity |
|
|
|||
|
Voltage Accuracy |
±1% |
|
||||
|
Output |
|
|||||
|
Rated Voltage |
380V/400V/415V(line-line) |
|
||||
|
Rated Frequency |
50/60Hz |
|
||||
|
Power Factor |
1 |
|
||||
|
Voltage Accuracy |
≤±1.0%@ balanced load；≤±5.0%@ unbalanced load |
|
||||
|
Frequency Accuracy |
50/60Hz±0.01% |
|
||||
|
Frequency Tracking Range |
Settable ，±0.5Hz~±5Hz ; factory setting ±3Hz |
|
||||
|
THD |
THDu≤2%(100% linear load),THDu≤4%( nonlinear load) |
|
||||
|
Three-phase Phase Accuracy |
120°±1° |
|
||||
|
Crest Factor |
3:1 |
|
||||
|
Overload |
＜105％， long run； ＜110％， 60mins； 110 ~ 125％， 10mins； ＞125 ~ 150％， 1mins； ＞150％， 200ms |
|
||||
|
System |
|
|||||
|
System Efficiency |
≥96%@ double conversion mode ，≥98%@ECO mode |
|
||||
|
Display |
Touch screen + LED |
|
||||
|
Wiring |
Support top in and bottom in |
Top in |
|
|||
|
Standard |
IEC62040-1-1; IEC62040-2; IEC62040-3 |
|
||||
|
Protection Class |
IP20 |
|
||||
|
Feeder Protection |
Standard: isolating switch, optional: fuse |
|
||||
|
Communication |
RS232/ RS485/ Modbus/SNMP (optional) / dry contact (optional) |
|
||||
|
Optional |
Dust-proof net, lightning protection module, LBS cable, earthquake-proof components, temperature and humidity sensor |
|
||||
|
Working Condition |
Temperature ：0 ~ 40℃； humidity：0~95%( no condensation) |
|
||||
|
Noise |
<60dB@1 meter |
|
||||
|
Altitude |
<1000 meters, no derating, ＞1000 meters, derating 1% if every 100 meters increased |
|
||||
|
Cabinet Type |
4 Modules |
7 Modules |
12 Modules |
|
||
|
Size |
|
|||||
|
System W x D x H (mm) |
600 x 890 x 1200 |
600 x 960x 1600 |
600 x 1010 x 2000 |
|
||
|
Module W x D x H (mm) |
440 x 690 x 86 ( 2U) |
|||||
|
Weight |
|
|||||
|
System(kg) |
140 |
185 |
250 |
270 |
|
|
|
Module(kg) |
25 |
|
||||
Product case1
Yiyang State Administration of Taxation
The State Administration of Taxation of Yiyang City is responsible for the collection and management of national tax revenue within the scope of Yiyang City, and maintaining the tax economic order within the scope of this city according to law;It provides a strong financial guarantee for the local economic take-off and social development of Yiyang.Yiyang State Administration of Taxation will forge ahead with a new look, explore and innovate, and contribute new strength to the construction of a harmonious national tax and a harmonious Yiyang

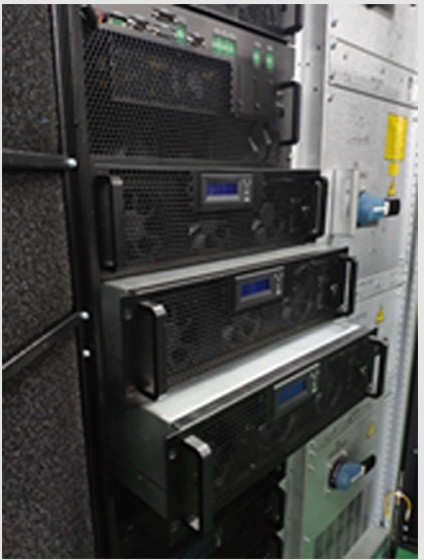

Propoweress modular HQ-M series provides power guarantee for the machine room on the third floor of Yiyang State Administration of taxation.
