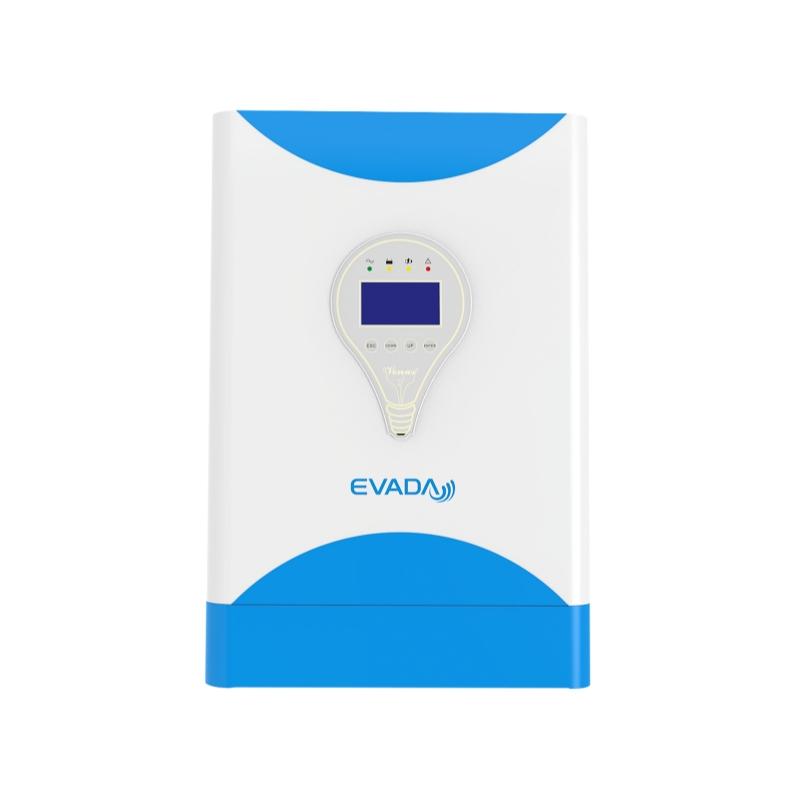

Propoweress off grid solar inverter is an all-in-one solar inverter with a wide range of
MPPT Voltage. It’s a versatile solution for the expanding needs of residential
usage, it offers higher energy production and advanced safety.
Item NO.:
EVS5048HProduct Origin:
ChinaColor:
White
• Pure sine wave solar inverter
• Integrated MPPT charger inside
• Output power factor 1
• DC soft start, over-load, over-heat and short circuit protection and restart
• Programmable supply priority for PV, Battery or Grid, settable through LCD screen
• Use with lithium/VRLA battery

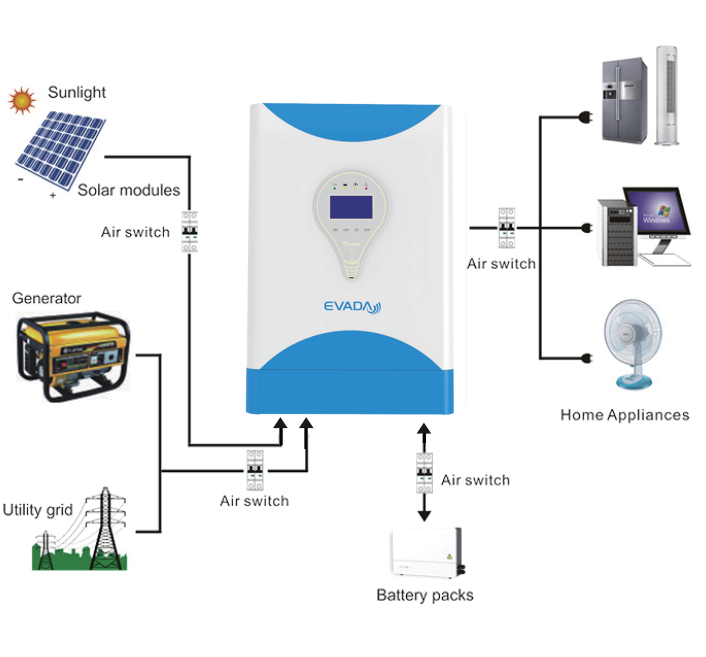

• Compatible to generator and utility grid
• Parallel installation & 3 phase configuration, up to 9 units for 5KW (optional)
• Anti-dust kit for harsh environment(optional)
• Intelligent WIFI monitoring function through mobile APP(optional)
|
MODEL |
EVS3024L |
EVS3024H |
EVS5048H |
|
Rated Power |
3000W |
3000W |
5000W |
|
Peak Power |
6000VA |
6000VA |
10000VA |
|
INPUT |
|||
|
AC Input |
170~280V/40-70Hz (for computers) ;90~280V /40-70Hz(for household appliances) |
||
|
OUTPUT |
|||
|
Output Voltage |
208VAC/220VAC/230VAC/240VAC |
||
|
Transfer Time |
10 ms (for computers); 20 ms (for household appliances) |
||
|
Overload (Battery Mode) |
1min@ 102 %~ 110 % Load ; 1 0 s@ 110 %~ 130 % Load ; 3s@ 130 % ~ 150 % Load |
||
|
Efficiency(Peak) (Battery Mode) |
> 94 % |
||
|
Power Factor |
1.0 |
||
|
THD |
≤3% (linear load rate), ≤5% (Non-linear load rate) |
||
|
Waveform |
Pure sine wave |
||
|
BATTERY&CHARGER |
|||
|
Battery Voltage |
24VDC |
48VDC |
|
|
Battery Type |
Lead Acid |
Lead Acid /Lithium Battery |
|
|
Charging Way |
MPPT |
||
|
Maximum PV Power Input |
1500W |
4000W |
5500W |
|
Maximum PV Voltage Input |
145VDC |
500VDC |
500VDC |
|
MPPT Tracking Range |
30~115VDC |
120~430VDC |
120~430VDC |
|
Charging Current |
10-120A (Adjustable) |
2-80A (Adjustable) |
|
|
Maximum Mains Charging Current |
60A |
80A |
80A |
|
Maximum PV Charging Current |
60A |
120A |
80A |
|
DISPLAY&INTERFACE |
|||
|
LCD Display |
Working modes/ Loads/ Input/ Output |
||
|
Communication Interface |
RS232/ Dry contact/ USB/ SNMP&WIFI optional |
||
|
Parallel Interface (Optional) |
/ |
Parallel card |
|
|
OPERATING ENVIRONMENT |
|||
|
Operating Temperature &Humidity |
0~ 40C ; 20 %~ 95 % (Non-condensing) |
||
|
Noise |
≤50dB |
||
|
Storage Temperature |
- 15 ~ 60C |
||
|
Cooling Method |
Fans |
||
|
Ingress Protection Rating |
IP20 |
||
|
Altitude |
1000 meters no derate. >1000meters derating, and with maximum altitude 4000 meters. |
||
|
PHYSICAL |
|||
|
Dims. L/W/H (mm) |
550*300*124mm |
||
|
Net Weight (kgs) |
9 |
||
|
Gross weight (kgs) |
11 |
||
|
STANDARD |
|||
|
Standards &.Certifications |
EN-IEC60335-1 , EN-IEC60335-2-29 |
||
