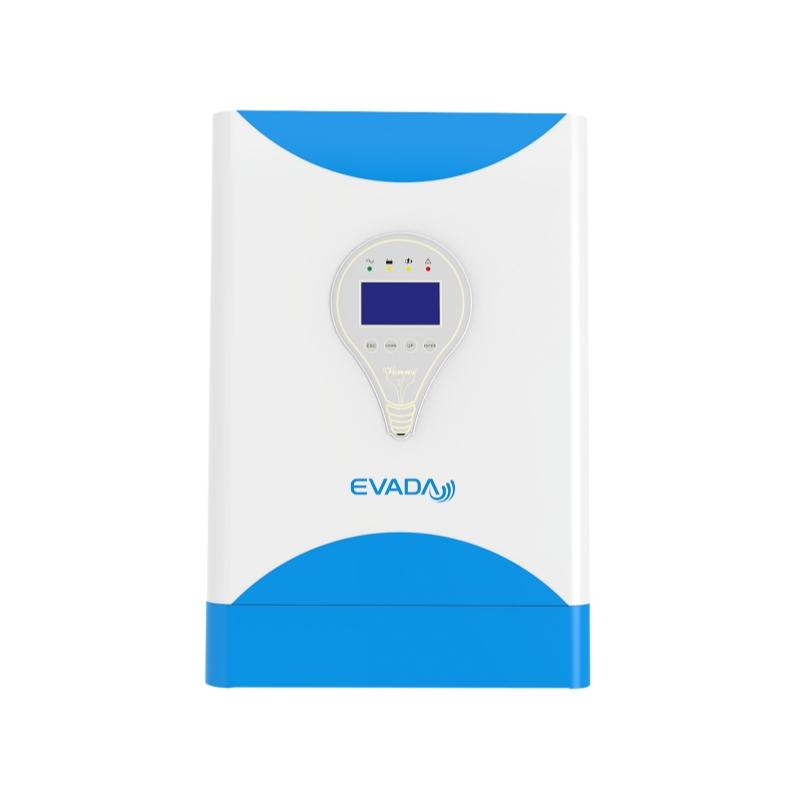

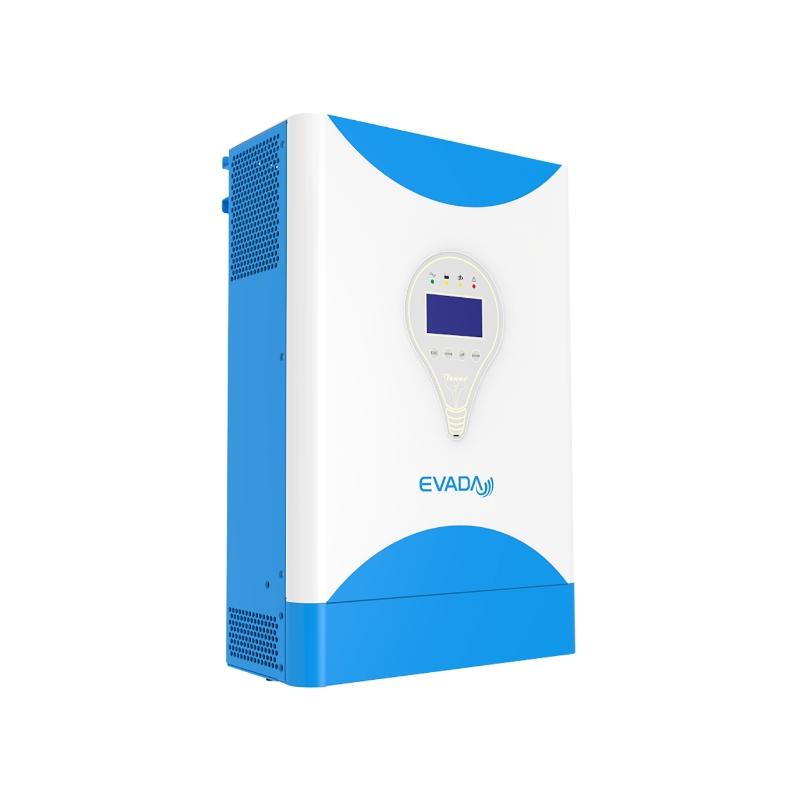

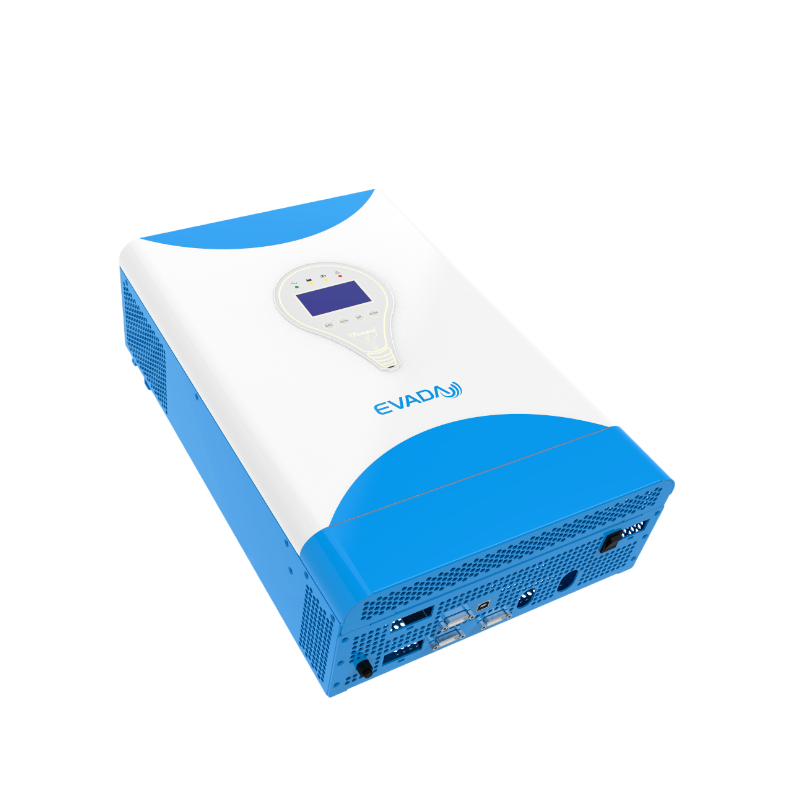

3-5kW
Single-phase off grid inverter. It’s an all-in-one
system for supplying solar power at home, it adopts ultra-high switching frequency, reduces the risk
caused by the connector and has multiple system integration features. It’s a combination of pure
sine wave solar inverter and integrated MPPT charger, the best choice for residential
usage.
Item NO.:
EVS3024LProduct Origin:
ChinaColor:
White
|
 |
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
Assured and Safe |
 |
|
|
|
|
|
|
|
|
|
|
|

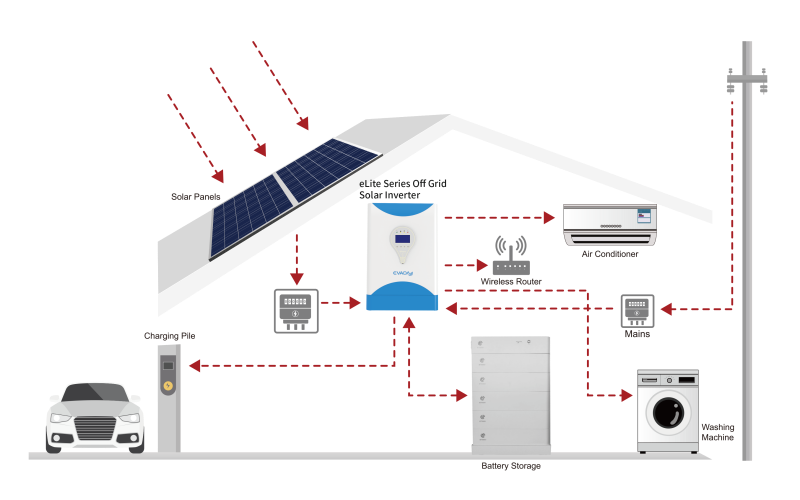

| Propoweress eLite Series Off Grid Solar System |
 |
|
|
|
Working Modes |
|
 |

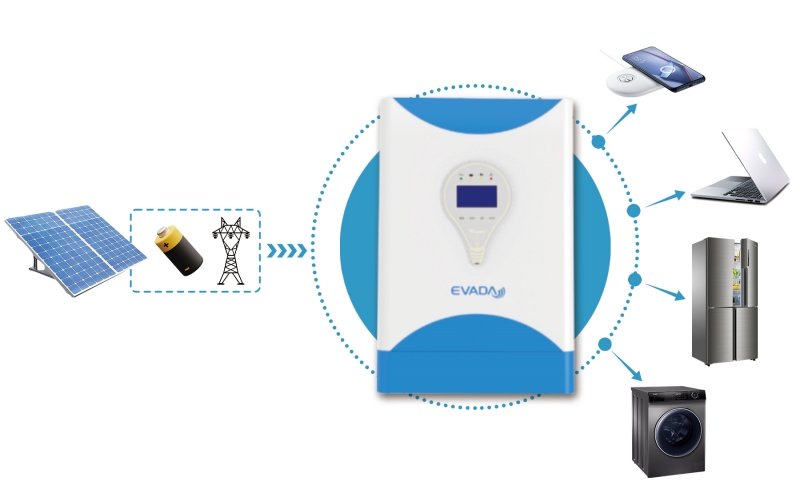

Battery Mode Solar energy provides power to the loads as first priority. If there is insufficient solar power available, battery will be used to power the loads. Utility is only used when solar is insufficient and the battery drops to low SoC |
 |
PV Mode Solar energy provides power to the loads as first priority. The photovoltaic directly supplies power to the loads while charging the battery. Once the solar power is insufficient, the grid will power the load |
 |
Utility Mode Utility provides power to the loads as first priority. The Utility and solar will both charge the battery. When there is no utility available, solar and battery will be used to power the loads |
|
MODEL |
EVS3024L |
EVS3024H |
EVS5048H |
|
Rated Power |
3000W |
3000W |
5000W |
|
Peak Power |
6000VA |
6000VA |
10000VA |
|
INPUT |
|||
|
AC Input |
170~280V/40-70Hz (for computers) ;90~280V /40-70Hz(for household appliances) |
||
|
OUTPUT |
|||
|
Output Voltage |
208VAC/220VAC/230VAC/240VAC |
||
|
Transfer Time |
10 ms (for computers); 20 ms (for household appliances) |
||
|
Overload (Battery Mode) |
1min@ 102 %~ 110 % Load ; 1 0 s@ 110 %~ 130 % Load ; 3s@ 130 % ~ 150 % Load |
||
|
Efficiency(Peak) (Battery Mode) |
> 94 % |
||
|
Power Factor |
1.0 |
||
|
THD |
≤3% (linear load rate), ≤5% (Non-linear load rate) |
||
|
Waveform |
Pure sine wave |
||
|
BATTERY&CHARGER |
|||
|
Battery Voltage |
24VDC |
48VDC |
|
|
Battery Type |
Lead Acid |
Lead Acid /Lithium Battery |
|
|
Charging Way |
MPPT |
||
|
Maximum PV Power Input |
1500W |
4000W |
5500W |
|
Maximum PV Voltage Input |
145VDC |
500VDC |
500VDC |
|
MPPT Tracking Range |
30~115VDC |
120~430VDC |
120~430VDC |
|
Charging Current |
10-120A (Adjustable) |
2-80A (Adjustable) |
|
|
Maximum Mains Charging Current |
60A |
80A |
80A |
|
Maximum PV Charging Current |
60A |
120A |
80A |
|
DISPLAY&INTERFACE |
|||
|
LCD Display |
Working modes/ Loads/ Input/ Output |
||
|
Communication Interface |
RS232/ Dry contact/ USB/ SNMP&WIFI optional |
||
|
Parallel Interface (Optional) |
/ |
Parallel card |
|
|
OPERATING ENVIRONMENT |
|||
|
Operating Temperature &Humidity |
0~ 40C ; 20 %~ 95 % (Non-condensing) |
||
|
Noise |
≤50dB |
||
|
Storage Temperature |
- 15 ~ 60C |
||
|
Cooling Method |
Fans |
||
|
Ingress Protection Rating |
IP20 |
||
|
Altitude |
1000 meters no derate. >1000meters derating, and with maximum altitude 4000 meters. |
||
|
PHYSICAL |
|||
|
Dims. L/W/H (mm) |
550*300*124mm |
||
|
Net Weight (kgs) |
9 |
||
|
Gross weight (kgs) |
11 |
||
|
STANDARD |
|||
|
Standards &.Certifications |
EN-IEC60335-1 , EN-IEC60335-2-29 |
||
