Capacity: 1KVA-15KVA Inverter
Features: AC 220V/DC 48V output; 3KVA module maximum 5 units in parallel; Compatible with LiFePO4 and lead-acid battery

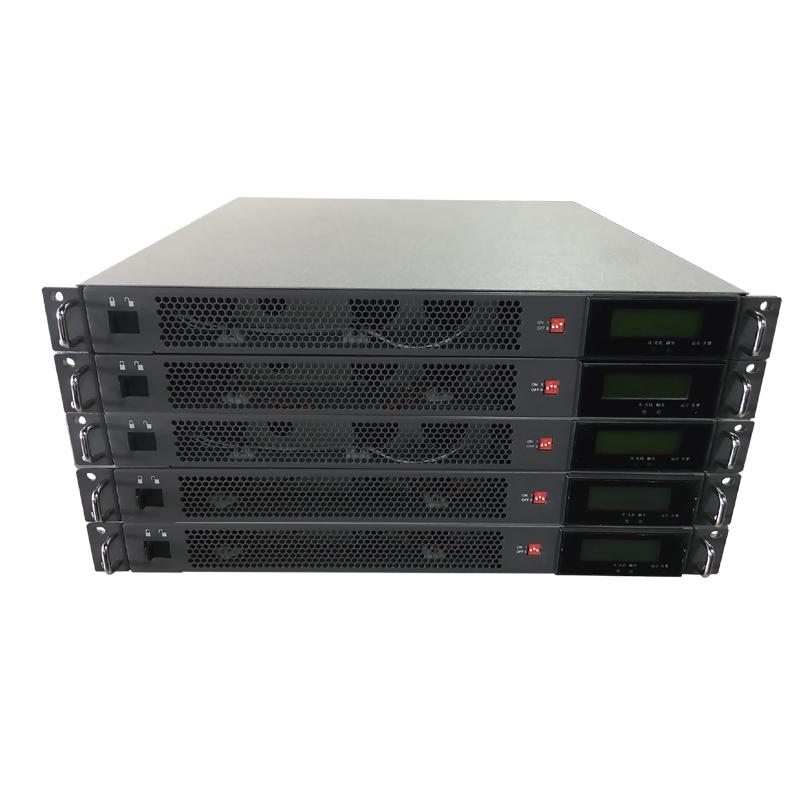

Description: XMI-HR Series is Intelligent AC and DC integrated power supply with 48Vdc. It is a standard 19-inch 1U rack-mounted product. When the mains power is normal, it directly supplies power to the load from the bypass. When the mains power is abnormal, the device switches to inverter mode and the inverter outputs 220V sine wave AC to the load. It includes a rectifier module to charge the battery pack, a low voltage protection device, and can output 48Vdc power at the same time to meet the various needs of users.

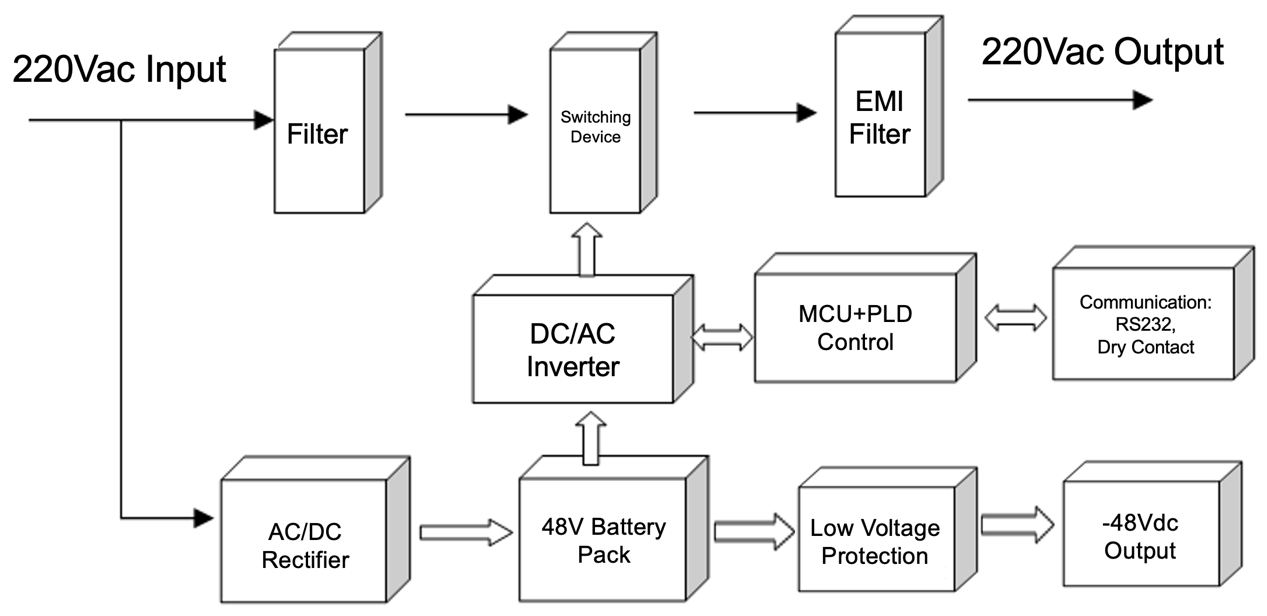

Working Principle：
Application Field
Distributed antenna system,remote unit, macro coverage, fixed network access equipment.
Performance Characteristics
Intelligent Flexibility
1.Compatible with LiFePO4 batteries and lead-acid batteries.
2.Standard 19-inch rack mount,supporting wall-mounted and embedded installation.
3.Strong overload capacity, support 150% rated load impact operation for communication equipment with load nonlinear characteristics.
4.Output can be AC 220V and DC 48V at the same time(AC and DC isolated) for various communication loads.
High Reliability
1.Input power factor ≥0.99.
2.Intelligent fan speed regulation function.
3.Battery mode efficiency ≥90% at full load.
4.Application Field Mains power mode efficiency is as high as 99%.
Green Performance
1.The battery power-off voltage can be set to extend the battery life.
2.Over-voltage and low-voltage protection; output overload and short-circuit protection; over-temperature protection; battery under-voltage warning and protection; battery over-charge protection; anti-surge, lightning protection.
3.Unattended function.
Intelligent monitoring and management
1.Dry contact communication interface: three interfaces for mains power failure, low battery and system alarm。
2.Standard RS485/RS232 communication interface/SNMP as option for remote monitoring.
|
Model |
XMI10HR-X |
XMI20HR-X |
XMI30HR-X |
XMI60HR-X |
XMI100HR-X |
XMI150HR-X |
|
Rated Capacity |
1kVA |
2kVA |
3kVA |
6kVA |
10kVA |
15kVA |
|
Input |
||||||
|
AC Voltage |
176-250VAC (settable) |
|||||
|
Frequency |
50Hz±5% |
|||||
|
Power Factor |
≥0.99 |
|||||
|
DC Voltage |
48VDC |
|||||
|
AC Output |
||||||
|
Power Factor |
0.8 |
|||||
|
Voltage |
220VAC±2% (inverter model) |
|||||
|
Efficiency |
≥90% (inverter model) |
|||||
|
Frequency |
50Hz±0.25Hz (inverter model) |
|||||
|
Output Waveform |
Pure Sine Wave (inverter model) |
|||||
|
THD |
≤3%( linear load under full load) |
|||||
|
Overload |
125% rated load protection after 1 minute；150% rated load protection after 10 sec |
|||||
|
Switching Time |
≤10ms |
|||||
|
DC Output |
||||||
|
Voltage |
-48VDC (pure inverter without DC output) |
|||||
|
Current |
When the suffix X is EA, the current is 6A; when it is ED, the current is 20A, when it is EF, the current is 30A; when it is EJ, the current is 50A. the above current includes charging current. |
|||||
|
Battery |
||||||
|
Low-voltage Warning |
43VDC±0.5VDC |
|||||
|
Under Voltage |
≤40VDC |
|||||
|
Overvoltage Protection Point |
≥60VDC |
|||||
|
Overvoltage Recovery |
≥55VDC |
|||||
|
Reverse Connection Protection |
Yes |
|||||
|
Output (Inverter Mode) |
||||||
|
Overvoltage Protection |
≥245VAC |
|||||
|
Low-Voltage Warning |
≤200VAC |
|||||
|
Protection |
||||||
|
Output Short Circuit Protection |
Yes |
|||||
|
Over Temperature Protection |
Built-in fan for heat dissipation, intelligent speed regulation according to load |
|||||
|
Battery Physical |
||||||
|
Rated Voltage |
48VDC |
|||||
|
Charging Voltage Range |
53-59VDC (settable) |
|||||
|
Charging Current |
6A/20A/30A/50A |
|||||
|
Mechanical Characteristics |
||||||
|
WxDxH(mm) |
482.6 x 350 x 44.5 (1U) |
482.6x500x88(2U) |
482.6 x492 x 222 (5U) |
|||
|
Weight(kg) |
＜10 |
＜20 |
＜30 |
＜50 |
||
Product case 1

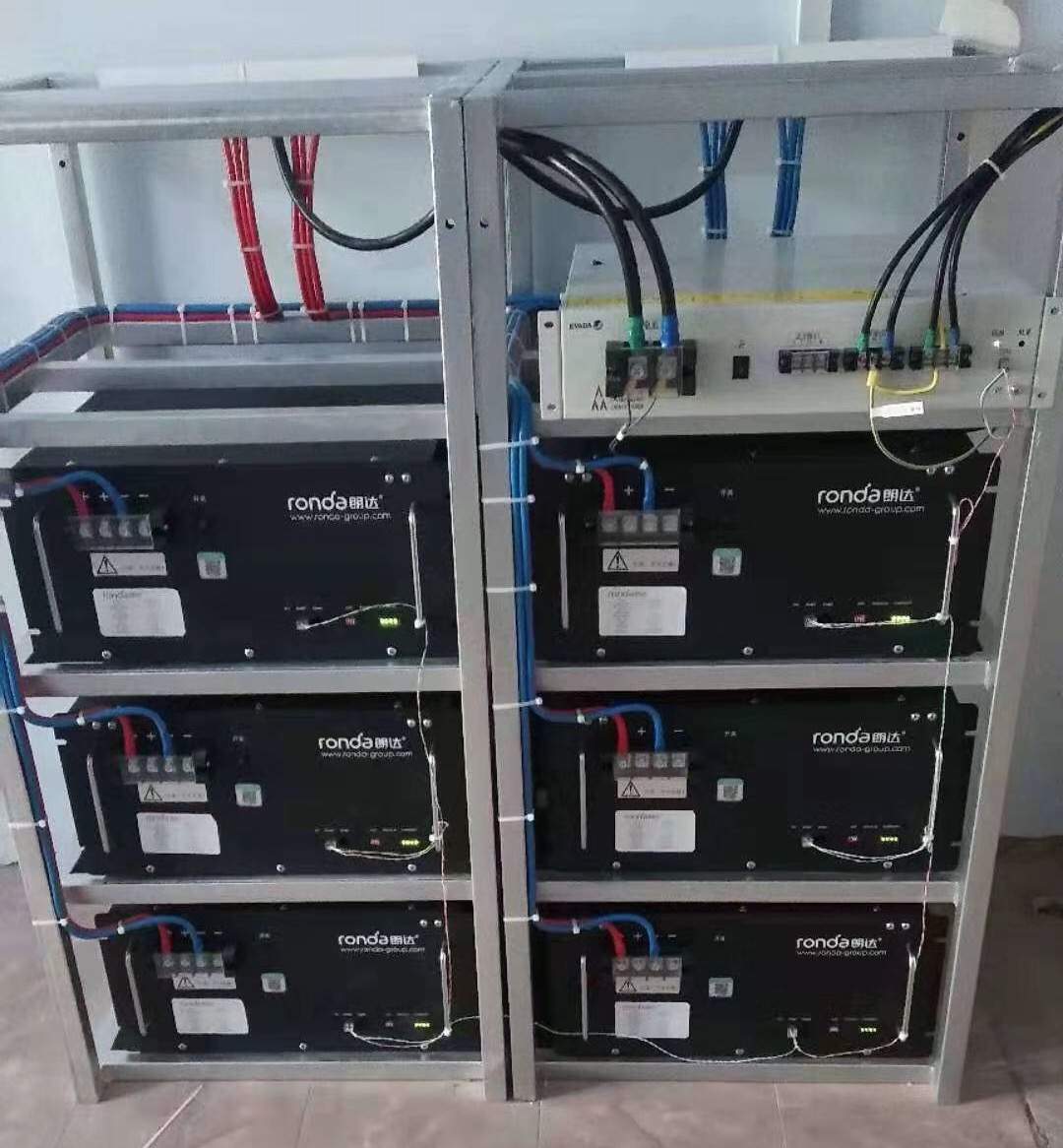

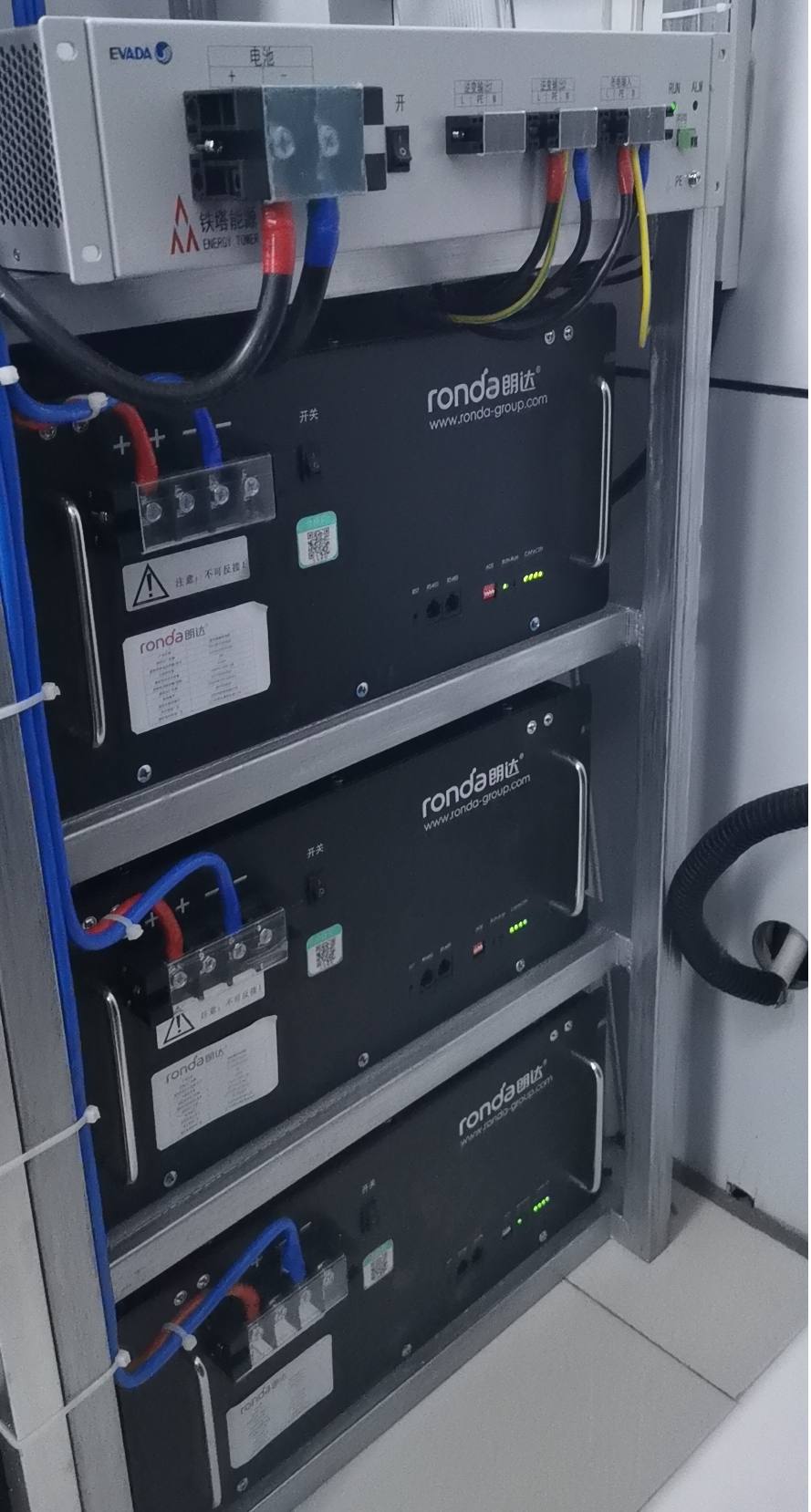

Evada 10kVA inverter with battery pack for Postal Savings Bank of China
