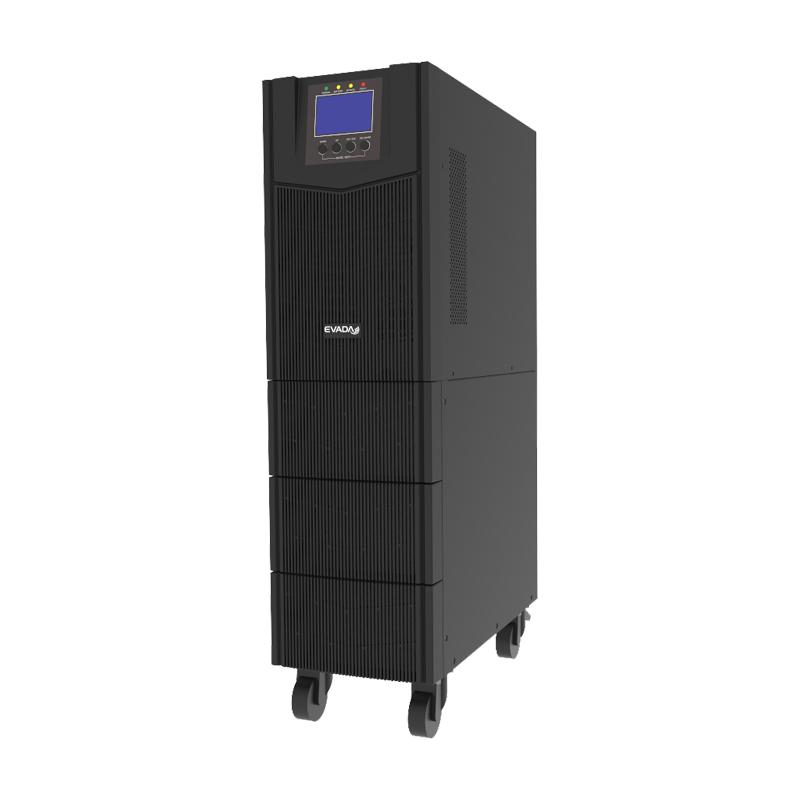

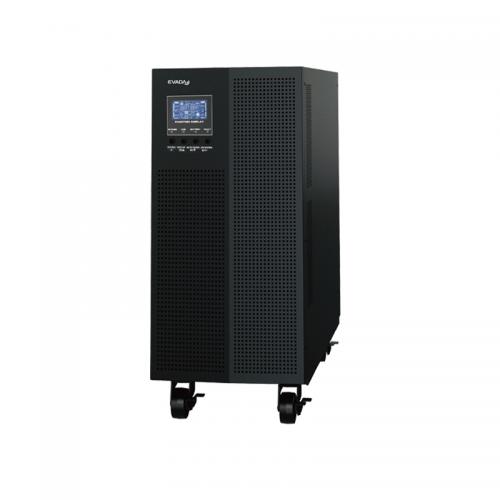

The Propoweress DTH11 series towering UPS use several advanced technology such as DSP control, frequency auto-sensing, soft-start, to providing high precision and high reliability protection to the application. It is very suitable for the high-end system such as telecommunication, precision instrument, banking equipment, computer server, data center, network equipment, and medical equipment etc.
Advanced Technology
1. DSP digital control technology
2. 40-70Hz wide frequency adaptability, and 50Hz/60Hz auto-adjust
3. Wide input voltage range
4. Automatic recovery function
Excellent Flexibility
1. 6-10kVA adjustable battery quantity
2. Adjustable charging current
3. Comprehensive display for easy monitoring
4. Maintenance bypass, parallel installation (optional for 6-10kVA)
5. Compact design, minimum footprint
6. RS232, USB, EPO, SNMP Slot communication ports
Green Performance
1. Input power factor ≥ 0.99
3. Output PF = 1
3. Maximum efficiency 95.5%
4. Eco mode energy saving
User Friendly Operation Interface

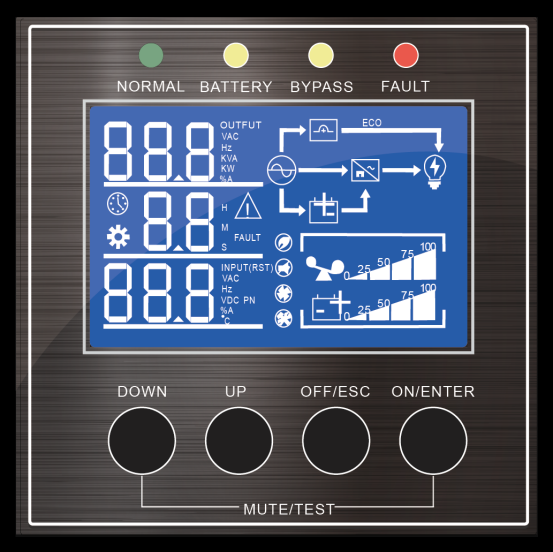

DTH11 Series UPS use the combination of LCD screen and LED to clearly displays all the working status, enable the user check the real-time machine working status and the environment information.
Comprehensive and Flexible Communication Interface

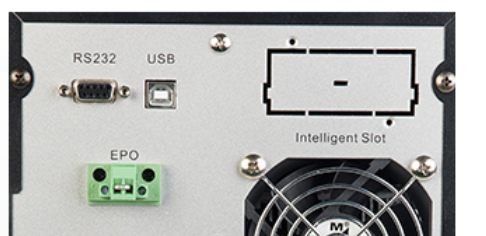

In order to provide more flexible monitoring scenario, DTH11 provide multiple communication interface such as RS232, USB, EPO, dry contact and optional SNMP slot/card etc.. It is perfectly compatible with different kind of system and applications.
High Efficiency

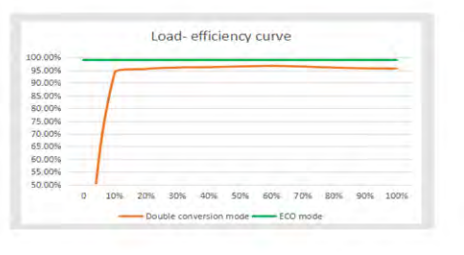

The DTH11 Series’s system efficiency is as high as 96%. With the high efficiency and PF=1, the energy consumption and operation cost will be saved by more than 20% each year. High efficiency significantly lowers operation costs and provides green feedback to the society.
Cold Start & Mains Power Start
The flexible startup function makes the UPS be able to work in some extreme condition:
① In the case of abnormal mains power, the UPS starts only with power from battery to provide the power for the emergency use.
② When the batteries are unavailable, The UPS starts only with from power from mains power. As a result the UPS still can work even if the battery is drained/broken, and the UPS could be used as higher precision voltage regulator.
Globalization Mindset

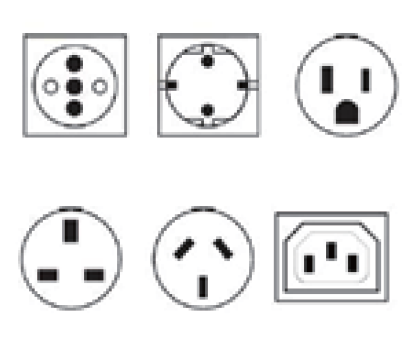

DHT11 series UPS introduce modular socket design, which enable Propoweress to provide various output sockets in accordance with the demand of the users all over the world. Last but not the least, DTH11 series UPS has the function of frequency(50Hz/60Hz) auto-sensing. It could automatically detect the power frequency, and adjust the machine frequency. Eventually the UPS could be used worldwide easily.
|
Model |
DTH11-1K DTH11-1KL |
DTH11-2K DTH11-2KL |
DTH11-3K DTH11-3KL |
DTH11-6K DTH11-6KL |
DTH11-10K DTH11-10KL |
|
|
capacity |
1kVA |
2kVA |
3kVA |
6kVA |
10kVA |
|
|
input |
||||||
|
Voltage range |
110 ~ 300VAC (110 ~ 176vac / 276 ~ 300VAC different power) |
|||||
|
frequency range |
40Hz-70Hz |
|||||
|
power factor |
≥0. 99@100 %Load |
|||||
|
|
||||||
|
output |
208 / 220 / 230 / 240VAC (208v ， set from LCD ， derating by 10%) |
|||||
|
Voltage accuracy |
±1% |
|||||
|
Frequency range (battery mode) |
50/60Hz±0.1% |
|||||
|
Overload capacity |
Line} mode: 30min@102 %~110% load, 10min@110 %~130% load, 30S@130 %~150% load, 500ms @ > 150% load |
|||||
|
Power Factor |
1 |
|||||
|
Peak Current Ratio |
3:1 |
|||||
|
Voltage Waveform Distortion |
≤2% @ 100% linear load ；≤5% @ 100% Nonlinear load |
≤2% @ 100% Linear load； ≤4% @ 100% Nonlinear load |
||||
|
Switching Time |
Main power Battery |
0 ms |
||||
|
Inverter Bypass |
＜4 ms |
|||||
|
Efficiency |
||||||
|
AC/AC Mode |
>93% |
>94% |
>94% |
> 95.5% |
> 95.5% |
|
|
Battery |
||||||
|
Standard |
Model |
12V / 7Ah |
||||
|
Number |
2 |
4 |
6 |
16(16~20 settable) |
||
|
Charging Current |
1A |
1A; max: 2A optional |
||||
|
Rated Voltage |
24 |
48 |
72 |
192(192-240 settable) |
||
|
Long Backup |
Charging Current |
1-12A |
||||
|
rated voltage |
36 |
72 |
96 |
192(192-240) |
||
|
|
||||||
|
protect |
Low battery power off, battery overcharge protection, battery leakage current, battery over discharge and short circuit |
|||||
|
alert |
Low battery voltage, charger failure, UPS failure, UPS failure, bypass |
|||||
|
Exhibition |
LCD displays UPS operation status |
|||||
|
|
||||||
|
Working conditions |
Relative humidity 20% - 95%, temperature 0-40 ℃ |
|||||
|
noise |
< 50dB (a) @ 1m |
|||||
|
Administration |
Low battery power off, battery overcharge protection, battery leakage current, battery over discharge and short circuit |
|||||
|
communication interface |
RS232,EPO,USB(Slot optional SNMP) |
|||||
|
physical characteristics |
||||||
|
standard long |
Dimension WxDxH (mm) |
145x276x225 |
145x276x225 |
190x395x325 |
200x460x775 |
200x460x775 |
|
(net weight / kg) |
9.6 |
18 |
25 |
55 |
55.25 |
|
|
backups |
Dimension WxDxH (mm) |
145x276x225 |
145x276x225 |
145x392x225 |
190x395x325 |
190x395x325 |
|
(net weight / kg) |
5 |
10 |
10.5 |
8.8 |
9.6 |
|
