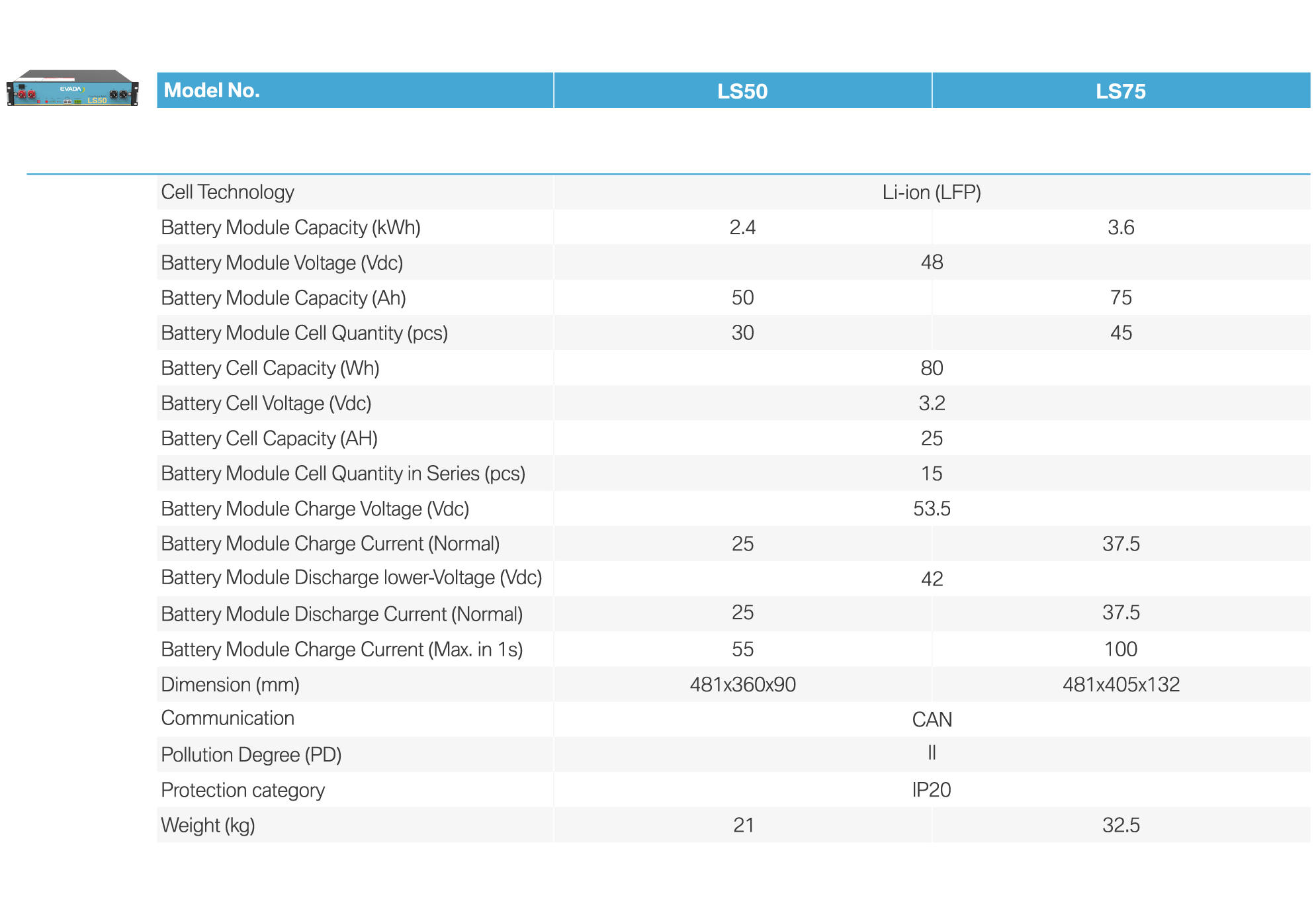

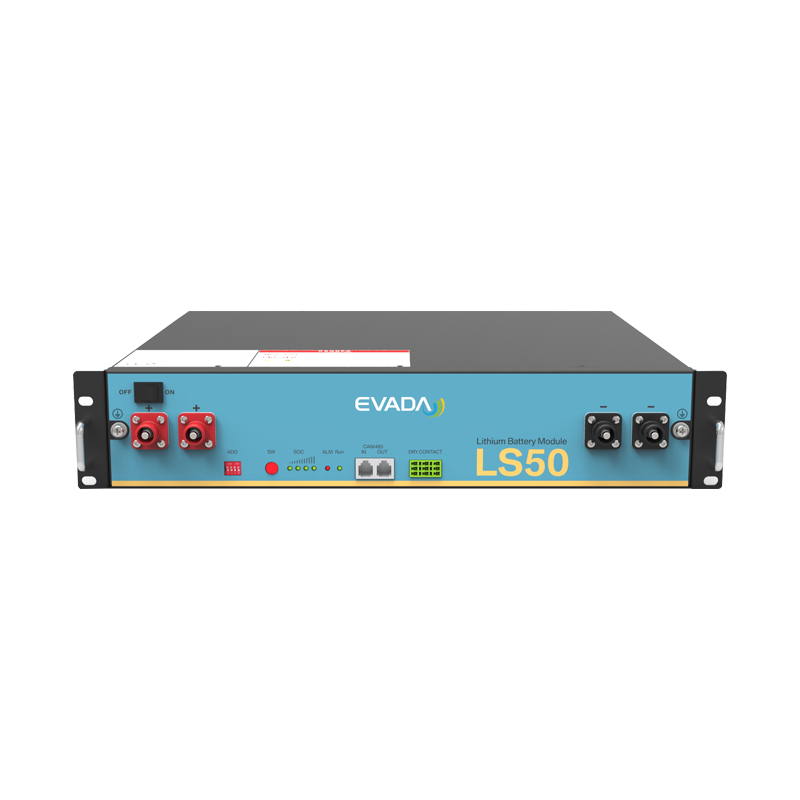

Lithium battery module

Features Wide voltage range for home and industrial use Built-in BMS monitors battery information in real time and improves battery life Soft start function to protect the inverter Long lasting 6000 cycle life at 80% DOD

Product name: X2 Modular Data Center Solution Cabinet Number: 2~8 Cabinet Size: 600*1200*2000mm/cabinet UPS Capacity:6~60kVA Refrigeration Capacity: 3.5/8/12.5kW PDU: 12-bit 10A+4-bit 16A Monitoring Display: 10 inch Touch Screen Product Introduction: X2 multi cabinet micro modular data center is specially designed for small intelligent modular data center. It integrates the distributed power system DPS (or UPS + maintenance free lead-acid battery), power distribution, refrigeration, monitoring, cabinet and other subsystems of the data center. Each subsystem is prefabricated in the factory and assembled on site to build a single row modular data center. It greatly save room space and supports the flexible expansion of the device. The configuration can be flexibly adjusted according to the application scenario.

Capacity: 10-30KVA UPS Features: tower, three phase in, single phase out Output PF=0.8 UPS with built-in isolation transformer, Dual DSP digital control technology,Safe and Reliable,Comprehensive Protection,Intelligent Management Battery: internal Color: Black Description: HQ 31 SERIES is 3 phase low frequency UPS 10KVA-30KVA

Capacity: 1-10KVA UPS Features: tower, single phase in, single phase out,Output PF=0.8 UPS with built-in isolation transformer, Dual DSP digital control technology,Safe and Reliable,Comprehensive Protection,Intelligent Management Battery: internal Color: Black Description: HQ 11 SERIES is single phase low frequency UPS 1KVA-10KVA

Capacity: 1-10KVA UPS Features: 19" rack mounted, single phase in, single phase out, transformer-free,Output PF=1, UPS Advanced Technology,Outstanding Flexibility Color: Black Discription: DTH-R SERIES is single phase high frequency UPS 1KVA-10KVA

HQ-M SERIES（MODULAR UPS 20KVA-200KVA） Power range: 20-200kVA Rated voltage: 380VAC/400VAC/415VAC 3P+N+PE Rated frequency: 50/60Hz Product description: Double conversion, Modular design Redundancy:6+1 or 10+2 redundancy design PF:       Output PF=1
