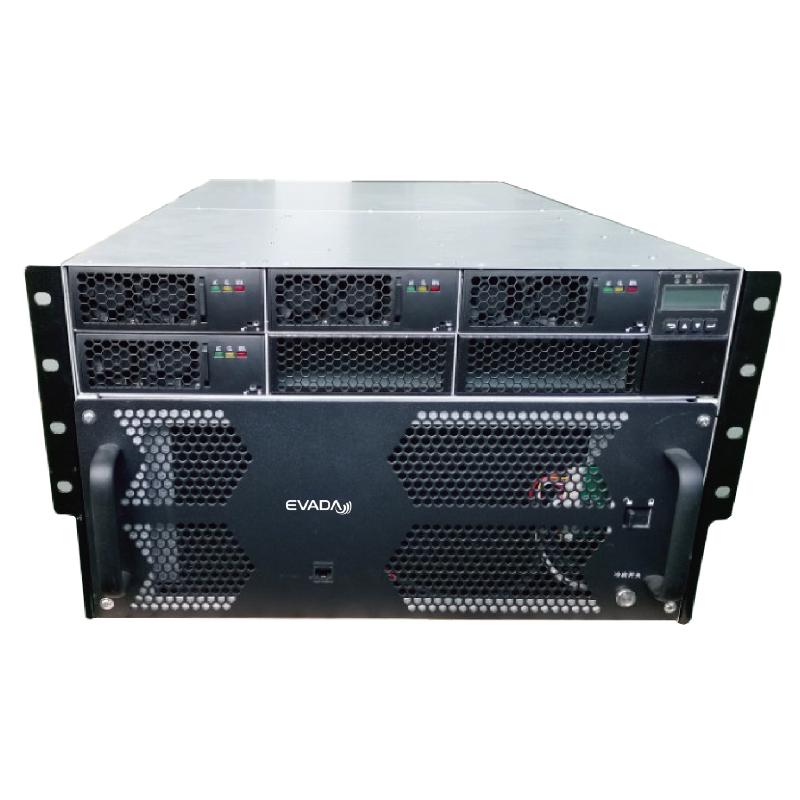

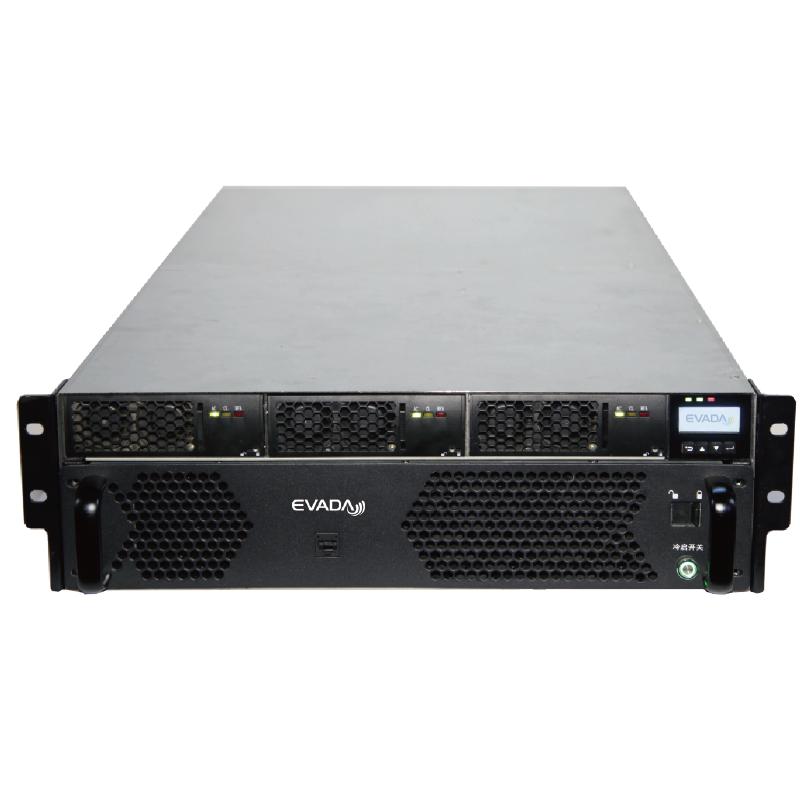

DPS-D SERIES UPS for Computer Rooms (6-12KW)

Capacity: 3-12KW UPS
Features: With dual 240V DC outputs for IT equipment; Power module redundancy design and distributed in each IT cabinet; Built-in lithium battery module For distributed / limited weight-bearing/ phased deployment computers.
Color: Black
Battery: Build in with lithium batteries
Description: DPS series products are distributed power systems, which are designed for the new generation of green data centers. It combines the mature and stable control technology of the traditional UPS with the new lithium battery storage technology. Small size, light weight, high intelligence, and easy deployment. It is generally suitable for staged Power supply application, such as distributed data centers, load-limited data centers, staged-deployment data centers, fast-deployment of data centers and other integrated cabinets.

Inquiry now Download

Product Detail
Technical Data

Performance characteristics
Stable and Reliable
1.With two AC inputs and two DC outputs or one DC output and one AC output.
2.Complete battery management system to ensure the continuous and reliable operation of the system.
3.Automatic-controlled fan speed according to the load to extend service life of the fan.
4.Ultra-wide input voltage range, without fear of mains voltage fluctuation.

Simple and Flexible
1.With insulation monitoring and display function.
2.Battery parameters can be set and monitored via the display.
3.Password protection function to set different permissions.
4.Rich communication interfaces can be used on demand.

Smart and Convenient
1.Hot -swap rectifier modules and lithium battery module，plug and play.
2.Standard DC maintenance bypass.
3.Adjustable output voltage range from 200VDC to 300VDC, to fit for different loads.
4.When the system fails or the internal parts need to be replaced, use maintenance power，the modules and the mainframe can be disconnected.

Efficient and green
1.Low input THDi, less than 3%.
2.The input power factor is as high as 0.999.
3.The system efficiency is more than 94.5%.
4.Build-in lithium battery with small space occupation(Max. 6U).

Performance

Model	DPS-1106D	DPS-1110D	DPS-1112D
Power	3KW~12KW
Operating	Two 220VAC inputs, two 240VDC outputs or one 220VAC output, one 240VDC output
Input
Voltage	One phase 220VAC
Voltage Range	170～300VAC
Frequency Range	40Hz ~ 70Hz
Power Factor	≥ 0.99
Output
Output Current	10~30A
Output Voltage	240VDC
Output Voltage Range	200～300VDC adjustable
Adjustable Current Range	10%~110% stepless adjustable
Voltage Accuracy	± 0.1%
THD	≦3%（100% load）；≦5%（50% load）
Efficiency	≧94.5%
Current Sharing	≦±3%
Battery Charging Current	0.2C（typical value）
Battery
Battery Type	10 /15AH（2U） 20/25/30AH（4U）	20/25/30AH（4U）
Charging Time	5 Hours
Charging Current	3A±10%	6A±10%
Physical
Size D×W×H(mm)	800440133(3U) 800440221(5U)	800440221(5U) 800440267(6U)	800440267(6U)
Net Weight (kg)	20/25	25/30
Environment
Storage Temperature	-25~55°C
Working Temperature	-5~45°C
Humidity	<95 % no condensing
Altitude	<2000M
Noise	Less than 52dB @ 1 Meter
Management
Intelligent RS-485/SNMP	Supporting Windows® 2000/2003/XP/Vista/2008、Windows® 7/8、Linux和MAC

* Specifications are subject to change without prior notice
