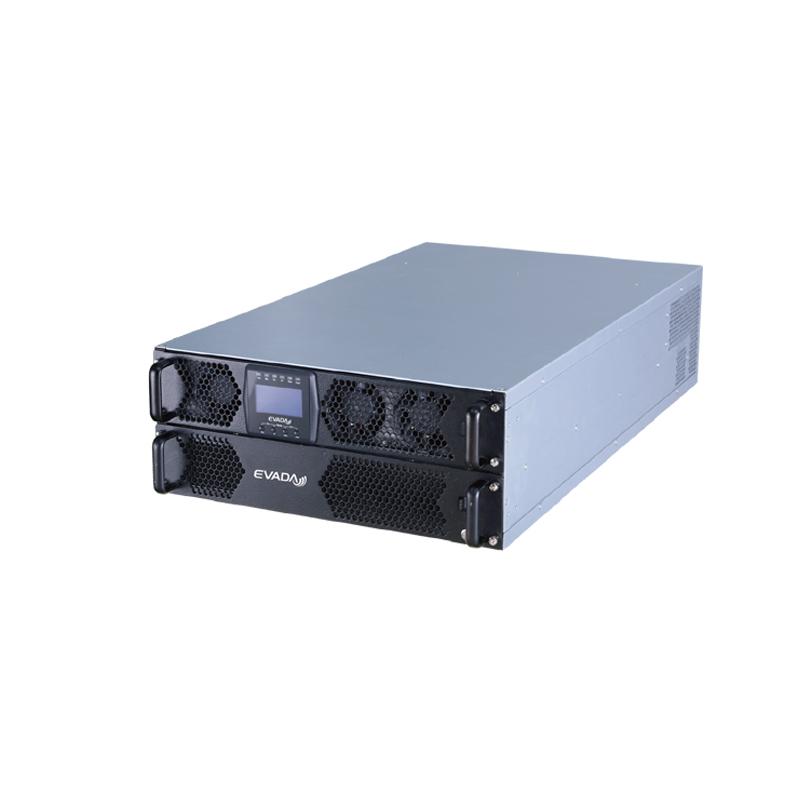

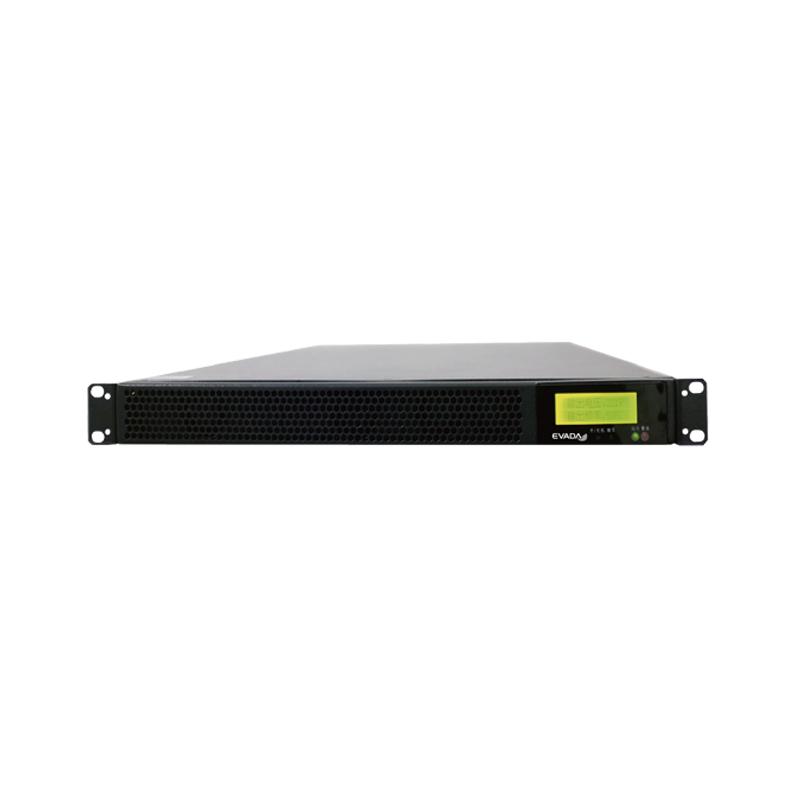

DPS-A SERIES UPS for Data Centers(3-10KW)

Capacity: 3-12KW UPS
Features: With dual 220Vac input and dual 220Vac output; Power module redundancy design; Distributed in each IT equipment cabinet; Built-in lithium battery module;
Color: Black
Battery: Build in with lithium batteries
Description: DPS series products are distributed power systems, which are designed for the new generation of green data centers. It combines the mature and stable control technology of the traditional UPS with the new lithium battery storage technology. Small size, light weight, high intelligence, and easy deployment. It is generally suitable for staged Power supply application, such as distributed data centers, load-limited data centers, staged-deployment data centers, fast-deployment of data centers and other integrated cabinets.

Inquiry now Download

Product Detail
Technical Data

Performance characteristics
Stable and Reliable
1.With dual 220Vac input and dual 220Vac output.
2.Time-sharing control is optional for each output.
3.Eliminate business interruptions caused by single points of failure and improve the reliability of the entire power system.
4.Lithium battery backup system with a lifespan up to 10 years.
5.Compatible with T2/T3/T4 level.

Simple and Flexible
1.No need independent distribution power system space and battery room.
2.Simple operation and maintenance, IT-based equipment architecture.
3.Support hot-swappable operation.
4.Support the parallel connection of lithium battery modules.
5.Rack-mounted design, quick deployment in phases as needed.

Smart and Convenient
1.Interactive communication technology to realize the intelligent management and linkage of the UPS to the battery.
2.Special cooling holes and air duct design can accurately control the temperature.
3.Abundant communication interfaces for monitoring LCD+LED display design, keep track of equipment operating status and information.

Efficient and green
1.The system efficiency up to 95.8%.
2.Discharge efficiency up to 97%.
3.DPS divides traditional large UPS into the cabinets and reduces PUE value.
4.Low input THDi and ultra-high input PF.
5.Low noise interference.

Performance

Model		DPS-1103A	DPS-1106A		DPS-1110A
Capacity		3KW	6KW		10KW
Input
Input voltage		220VAC
Voltage range		176~250VAC @(80~100%) load	176~300VAC@ (80~100%) load
Frequency Range		46Hz~54Hz@50Hz system；56Hz~64Hz@60Hz system
Power factor		≥ 0.99
Output
Output voltage		208/220/230/240VAC
Voltage Accuracy		± 1%
Frequency Range (Synchronization Range)		46Hz~54Hz@50Hz system；56Hz~64Hz@60Hz system
Frequency Range (BatteryMode)		50Hz±0.1Hz or 60Hz±0.1Hz
Power factor		＝0.8	＝0.9
Crest Factor		3:1
THD		≤2% @ 100% linear load；≤3% @100% nonlinear load
PF		≥ 0.99
	System Battery	≤6 ms	0 ms
Switching time	Inverter Bypass	≤6 ms	0 ms
	Inverter ECO	<10 ms
Wiring
Numbers Of Input And Output		One input and oneoutput	Two inputs and two outputs
Efficiency
Inverter Mode		>90%	>94%
Battery
Specification		48V lithium battery	230V lithium battery
Battery Capacity		10AH	15AH	20AH/30AH	20AH/30AH
Structure
Size WxDxH(mm)		800 x 438 x 44（1U）	750 x 438 x176(4U)	750 x 438 x176(6U)	750 x 438 x 267（6U）
Power Source Net Weight (kg)		8	28		32
Environment
Storage And Transportation		-25~55°C
Working Temperature		0~45°C
Working Humidity		<95% and no condensation
Working Altitude		<1000 veters, no derating, ＞1000 meters, derating 1% if every 100 metersincreased
Working Noise		<55dB@1Meter
Communication
RS485		Support Windows® 2000/2003/XP/Vista/2008、Windows® 7/8、Linux andMAC
Optional SNMP		Support power management by SNMP

* Specifications are subject to change without prior notice
