MicroStation is needed in 5G Era
"4G changes life and 5G changes society". Since the official launch of 5G business in China last year, people are full of expectations for 5G.
As we all know, 5G has the advantages of enabling thousands of industries. The three scenarios of 5G(including eMBB, URLLC, and mMTC) are applied in fields such as driverless driving, industrial Internet, distance education, and telemedicine.
5G is mainly reflected in network capability, including transmission rate and delay. For the deployment of 3.5GHz band, the passive compartment may not meet the needs of 5G deployment and 5G services.
The advantages of 5G small base station are prominent. As an effective extension of macro base station signal, it enhances the network coverage ability, and combines with MEC and other technologies to become the best solution for indoor and outdoor coverage.
MicroStation "big function"
The millimeter wave band adopted by 5G is distributed between 2515MHz and 4900MHz. The higher the frequency, the shorter the wavelength and the weaker the diffraction ability, the smaller the radiation range when encountering obstacles.
5G "MicroStation" came into being, filling the gap of "macro station", playing the role of "relay", forming a full coverage of the whole network. The "body" of the "MicroStation" is smaller than that of the macro station, and its transmission power and coverage are also smaller than that of the macro station. The MicroStation spacing will be reduced to 10-20 meters (compared with the spacing of at least 500 meters between the macro stations).
As the three major operators accelerate the large-scale construction of 5G network, the number of MicroStation will usher in a period of large-scale development!

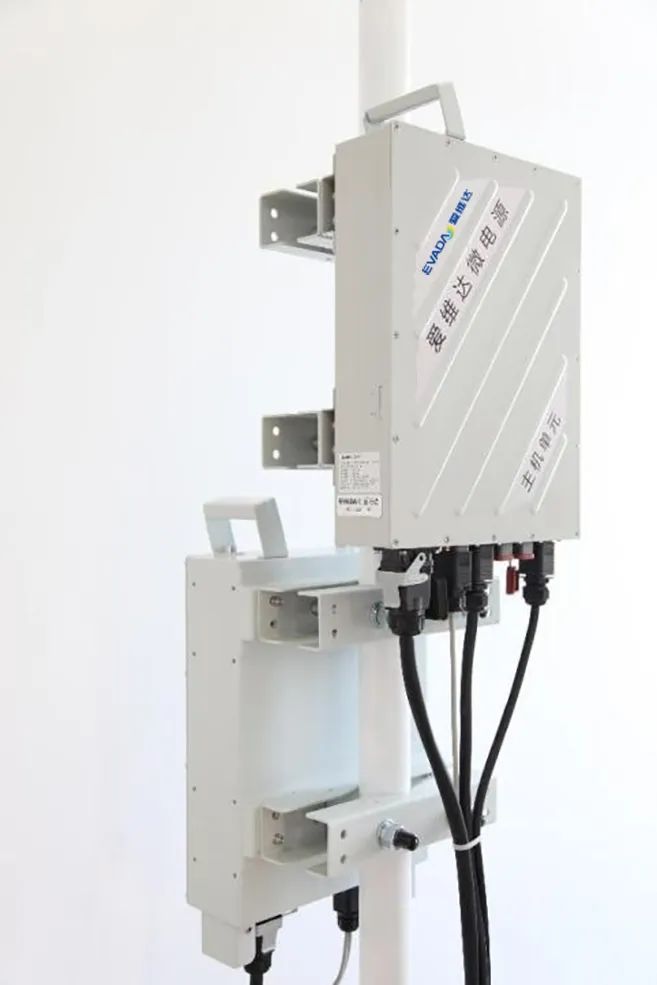

As a professional power supply manufacturer, Evada has crossed from PHS, 3G, 4G wireless communication power solutions to the 5G era. Evada power has accompanied the development of China's communications! Evada independently researched and developed integrated power supply / blade power supply (AC to DC) for 5G MicroStation, outdoor cast aluminum natural heat dissipation, IP55 protection grade, high efficiency and energy saving, convenience and simplicity, configuration of lithium battery energy storage, modularization, flexible expansion and other characteristics. It can be installed in a variety of flexible ways, such as pole, flag, wall hanging, etc., and can be quickly deployed without land occupation and less engineering exploration. It can be applied to all kinds of outdoor scenes to escort the rapid coverage of 5g network.
Product characteristics
1.Efficient natural heat dissipation design, no need for air-cooled modules, cast aluminum mold opening integrated shell, high IP protection level, suitable for outdoor applications in various harsh scenes.
2.The product power is designed to be 1-6kw (slightly different in different volumes) to meet the power requirements of MicroStation in different scenarios.
3.Using DSP digital control technology, the efficiency can reach more than 96%.
4.Wide input voltage range, AC input voltage range 90~290v. It can also be connected to 200vdc~400vdc DC, which is compatible with DC remote supply to the far end of the scene.
5.Perfect BMS battery management, with the function of power under load and battery low voltage protection (lvld+lvbd), can realize temperature compensation, automatic floating charge control, automatic voltage regulation, battery capacity calculation, online battery test and other functions.
6.Perfect dynamic ring communication interface (RS485, dry contact), flexible networking, remote dynamic ring monitoring access, unattended.
7.The input, output and communication adopt professional three defense aviation interfaces, which are easy to use, safe, fast and waterproof.
8.The built-in wireless monitoring communication module supports the Bluetooth near-field communication function, the nb-iot Internet of things communication function, the (optional) all Netcom (4G system) communication function, and is compatible with the dynamic ring monitoring network of various operators.
9.It can cooperate with 5G MicroStation communication flow to start the sleep function in idle time, solve the problem of power consumption, and reduce costs and increase efficiency for users.
10.Lithium iron phosphate battery module is optional, and battery expansion interface is reserved for convenient expansion.
11.The protection grade is IP55, which meets the application scenarios such as wall hanging, pole holding, angle steel erection, and supports the installation methods such as flag, paperback, and landing.
12.Modular design, fast installation and combination, simple operation and maintenance, and configuration of components to achieve single person handling and installation of equipment.
13.It can work normally under the ambient temperature of -25 ℃ ~55 ℃.
Example of case
"Evada" was shortlisted in the centralized procurement catalogue of outdoor small integrated DC power products of China Mobile from 2021 to 2022
